Leaflet is a popular open-source Javascript library for building web mapping applications. qgis2leaf plugin provides a simple way to export your QGIS map to a functioning leaflet-based web map. This plugin is a useful way to get started with web mapping and create an interactive web map from your static GIS data layers.

Overview of the task

We will create a leaflet web map of world’s airports.

Other skills you will learn

  • Using CASE SQL statement in Field Calculator to create new field values based on different conditions.

  • Locating and using SVG custom icons in QGIS.

Get the data

We will use the Airports dataset from Natural Earth.

Download the Airports shapefile.

Data Source [NATURALEARTH]

Procedure

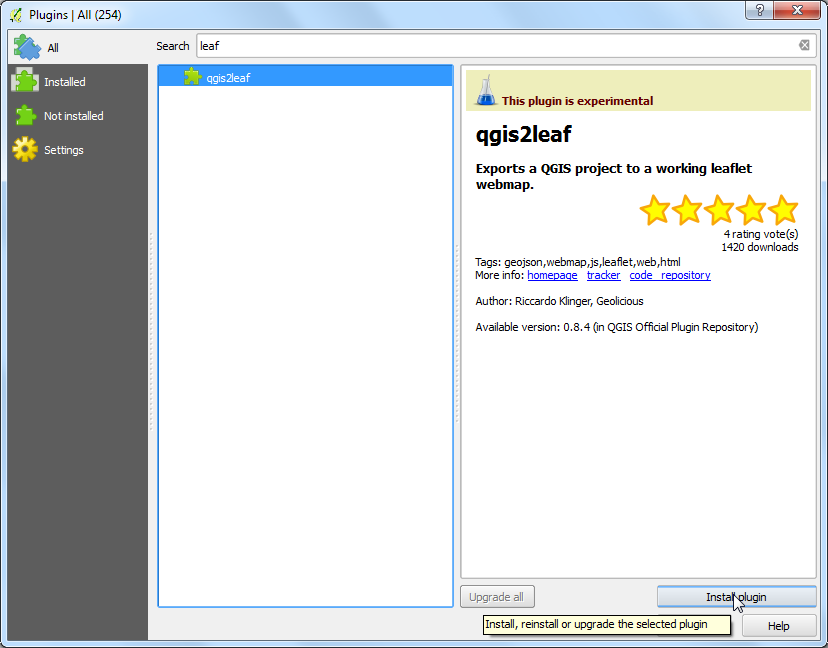

  1. Install the qgis2leaf plugin by going to Plugins ‣ Manage and Install Plugin. Note that the plugin is currently marked experimental, so you will need to check Show also experimental plugins in Plugin Settings. (See Using Plugins for more details on installing plugins in QGIS)

../_images/1190.png

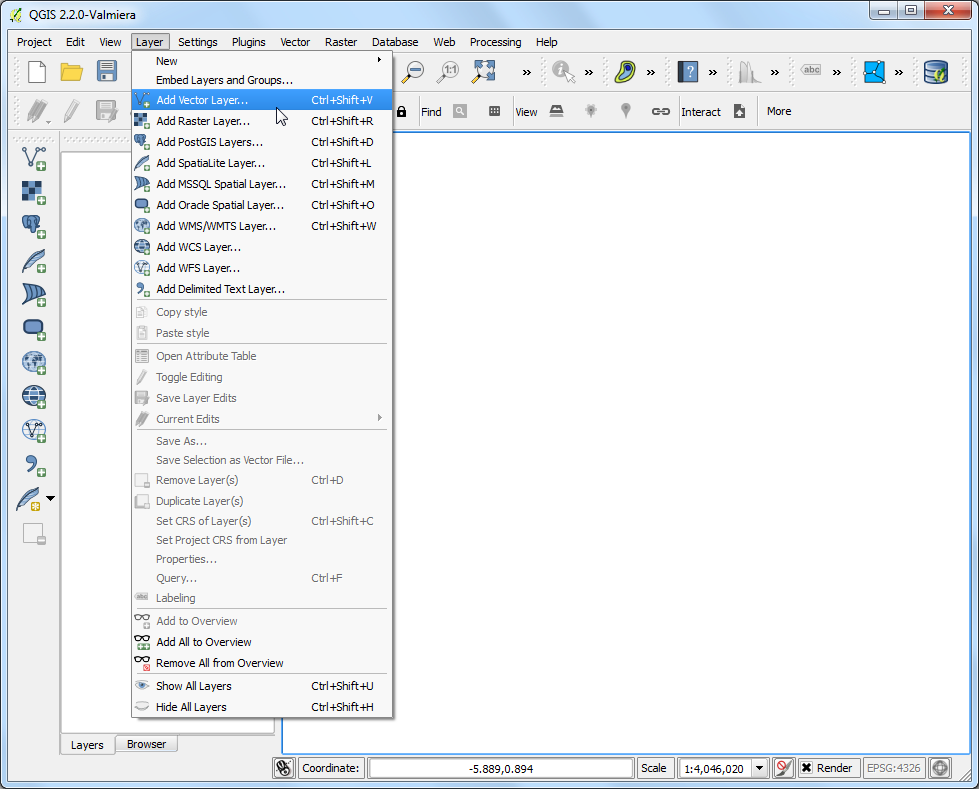

  1. Unzip the downloaded ne_10m_airports.zip file. Open QGIS and go to Layer ‣ Add Vector Layer. Browse to the location when the files were extracted and select ne_10m_airports.shp. Click OK.

../_images/2154.png

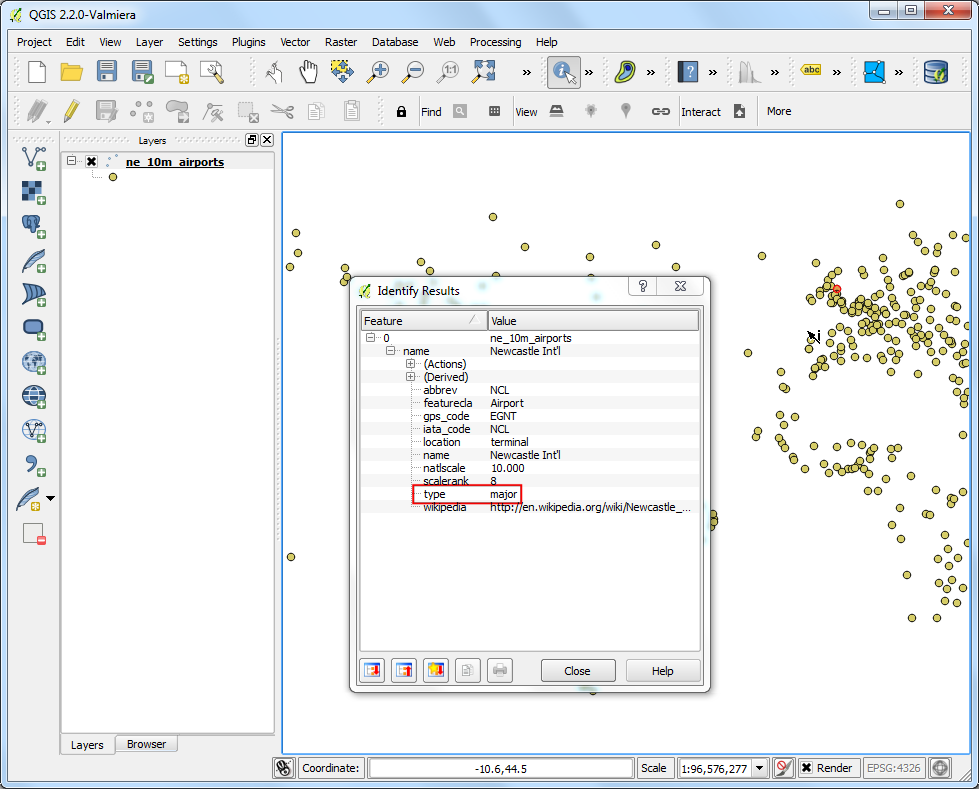

  1. Once the ne_10m_airports layer is loaded, use the Identify tool to click on any feature and look at the attributes. We will create an airport map where we classify the airports into 3 categories. The attribute type will be useful when classifying the features.

../_images/397.png

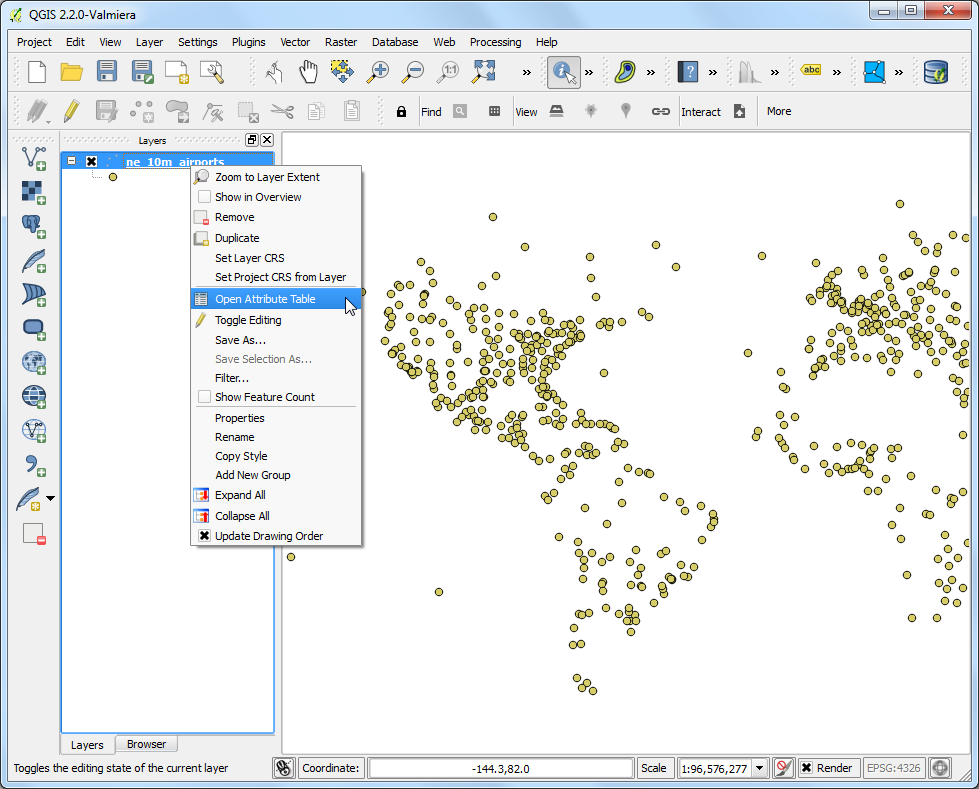

  1. Right-click the ne_10m_airports layer and select Open Attribute Table.

../_images/461.png

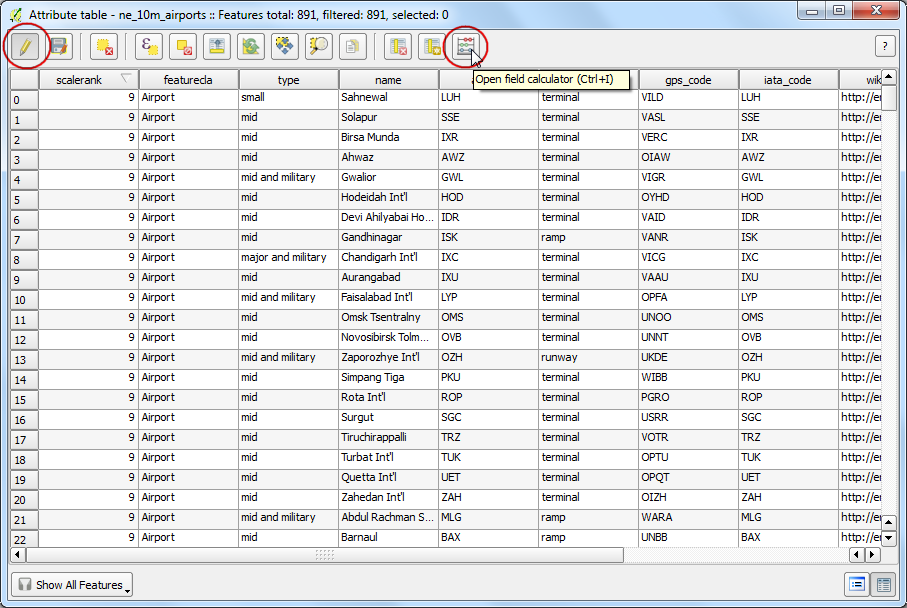

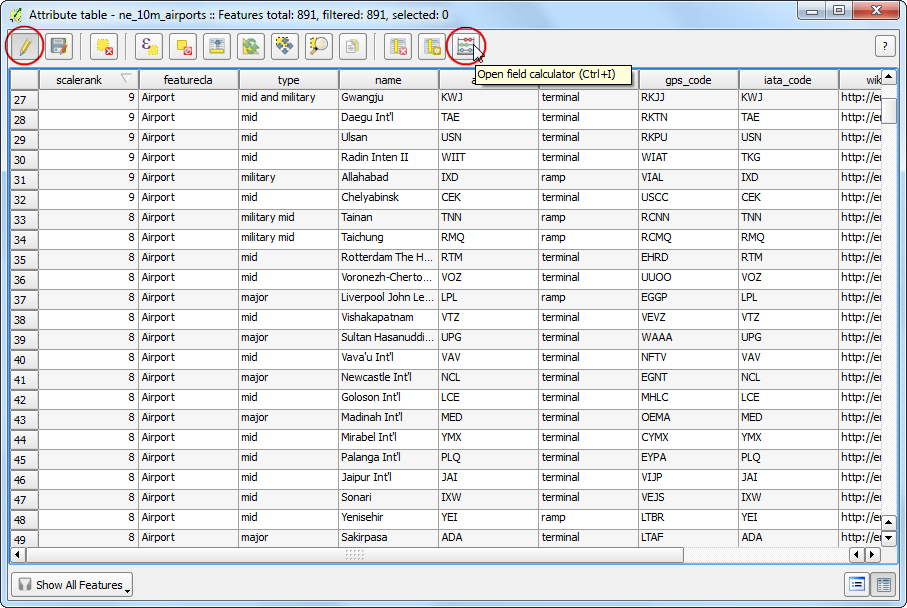

  1. In the attribute table dialog, click the Toggle Editing button. Once the layer is in editing mode, click the Open Field Calculator button.

../_images/554.png

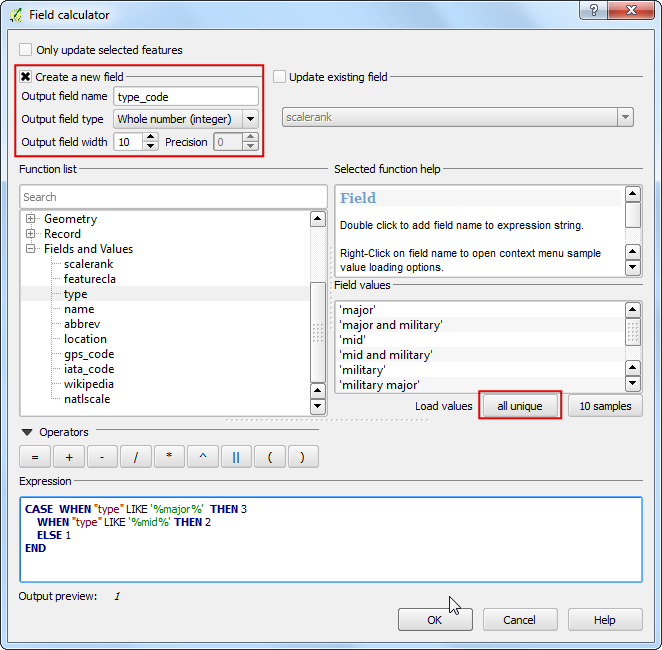

  1. We want to create a new attribute called type_code where we give major airports a value of 3, mid-sized airports a value of 2 and all others a value of 1. We can use the CASE statement and write an expression that will look at the value of type attribute and create a type_code attribute based on the condition. Check the Create a new field box and enter type_code as the Output field name. Select Whole number (integer) as the Output field type. In the Expression window, enter the following text.

CASE  WHEN "type" LIKE '%major%'  THEN 3
 WHEN "type" LIKE '%mid%' THEN 2
 ELSE 1
END
../_images/652.png

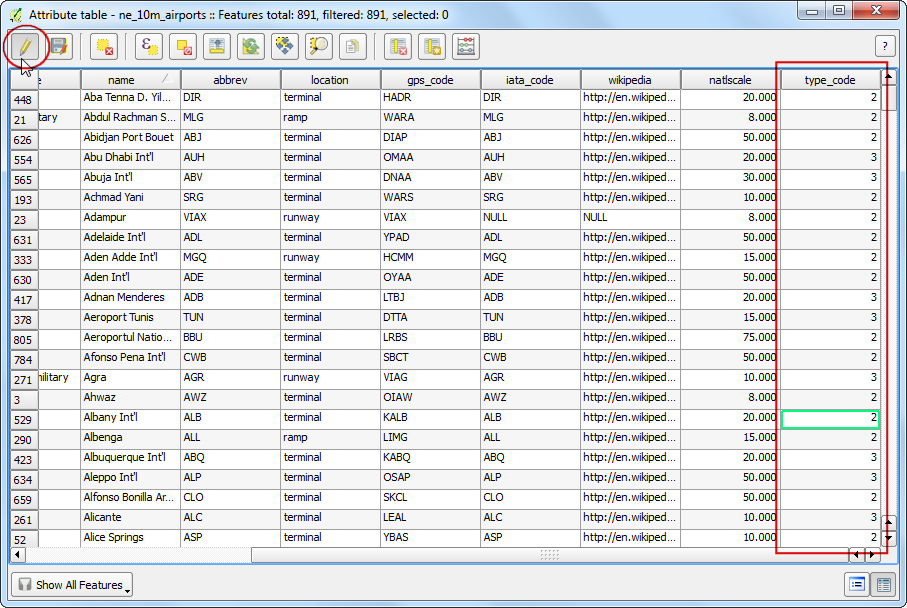

  1. Back in the Attribute Table window, you will see a new column at the end. Verify that your expression worked correctly and click the Toggle Editing button to save the changes.

../_images/751.png

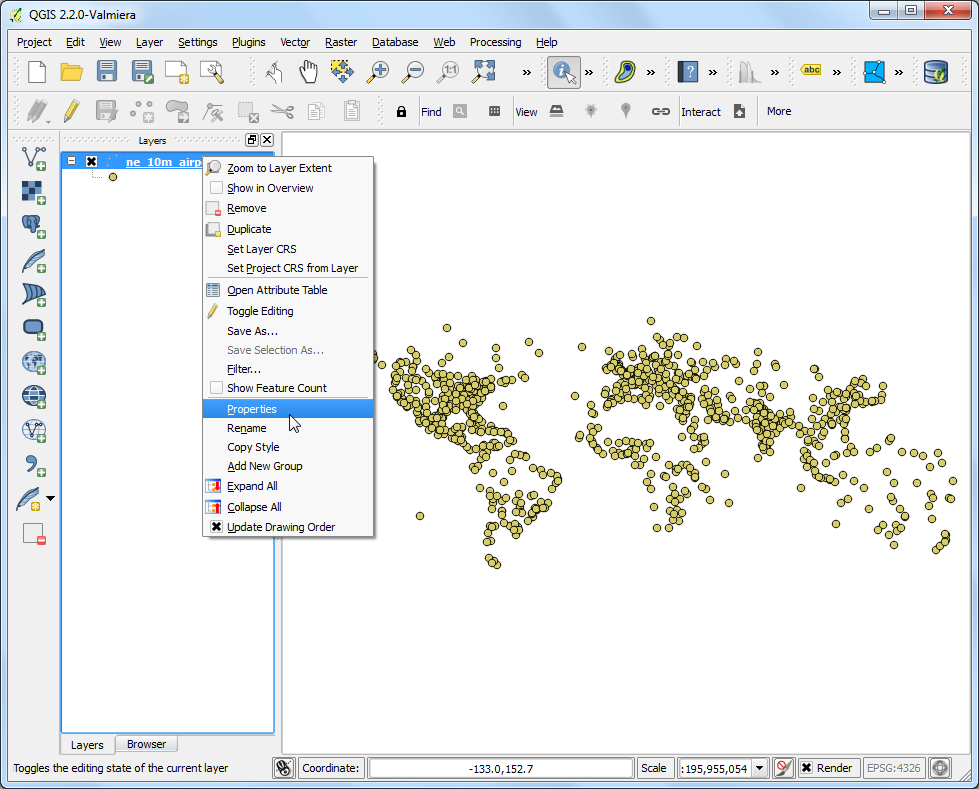

  1. Now we will style the airports layer using the newly created type_code attribute. Right-click the ne_10m_airports layer and select Properties.

../_images/850.png

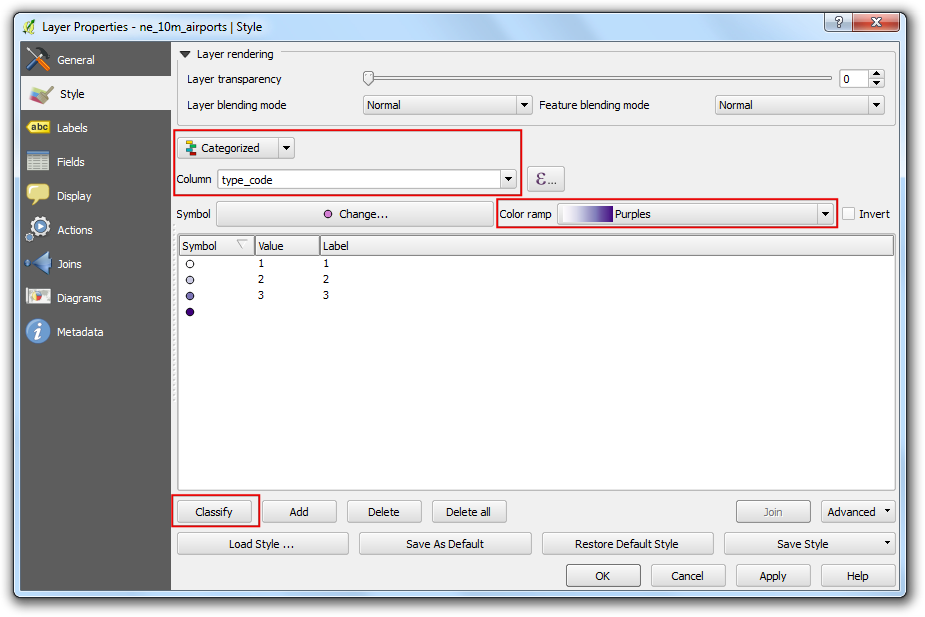

  1. Select the Style tab in the Layer Properties dialog. Select Categorized style from the drop-down menu and choose type_code as the Column. Choose a color ramp of your choice and click Classify. Click OK to go back to the main QGIS window.

../_images/950.png

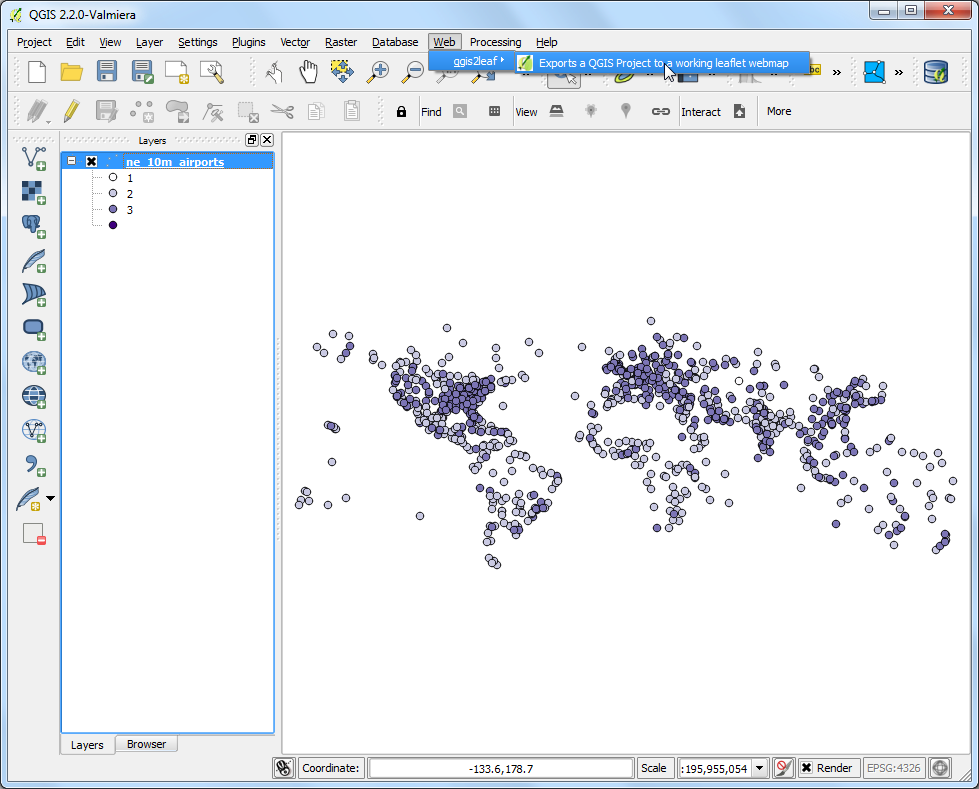

  1. Here you will see a nicely styled airport map. Let’s export this to create an interactive web map. Go to Web ‣ qgis2leaf ‣ Exports a QGIS Project to a working leaflet webmap.

../_images/1057.png

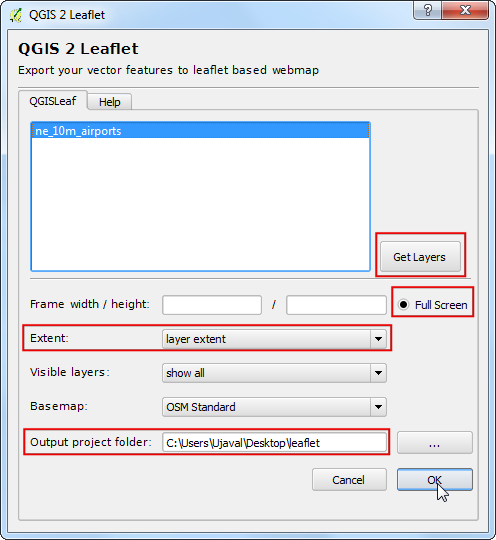

  1. In the QGIS 2 Leaflet dialog, click Get Layers to get the refreshed layer list. Select the Full screen option to have a full screen web map. Choose layer extent as the Extent of the exported map. Choose a Output project folder on your system where the plugin will write the output files. Click OK.

../_images/1191.png

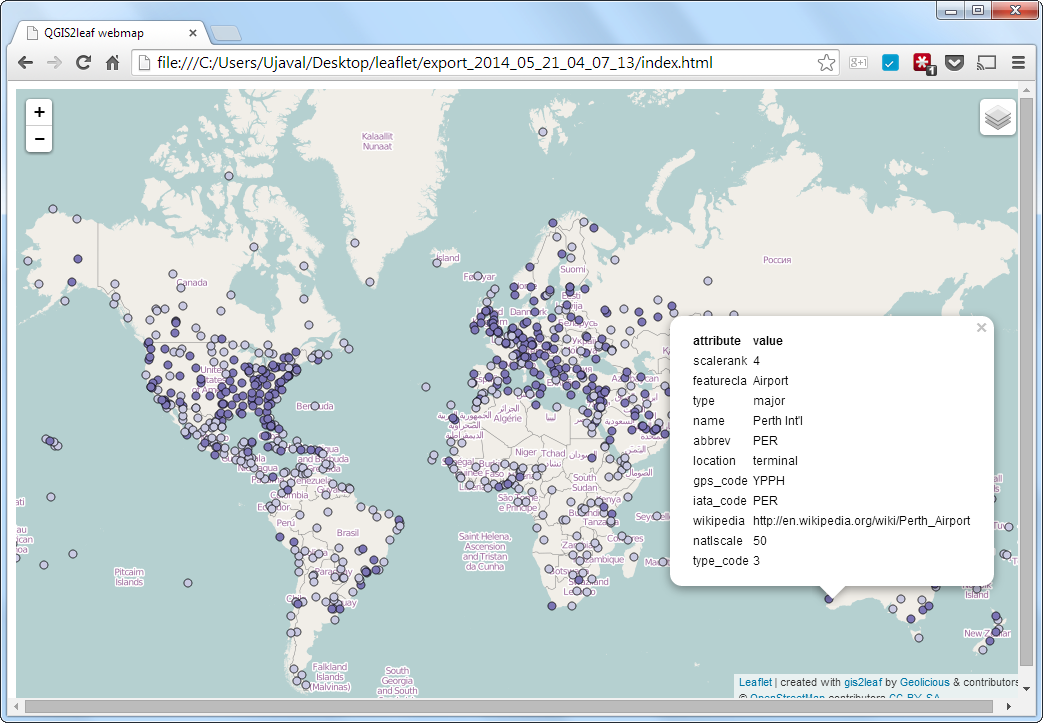

  1. Once the export process finishes, locate the output folder on your disk. Open the index.html file in a browser. You will see an interactive web map that is a replica of the QGIS map. You can zoom and pan around the map and also click on any feature to get an popup window with attribute information. You can copy the contents of this folder to a web server to have a full featured web map.

../_images/1259.png

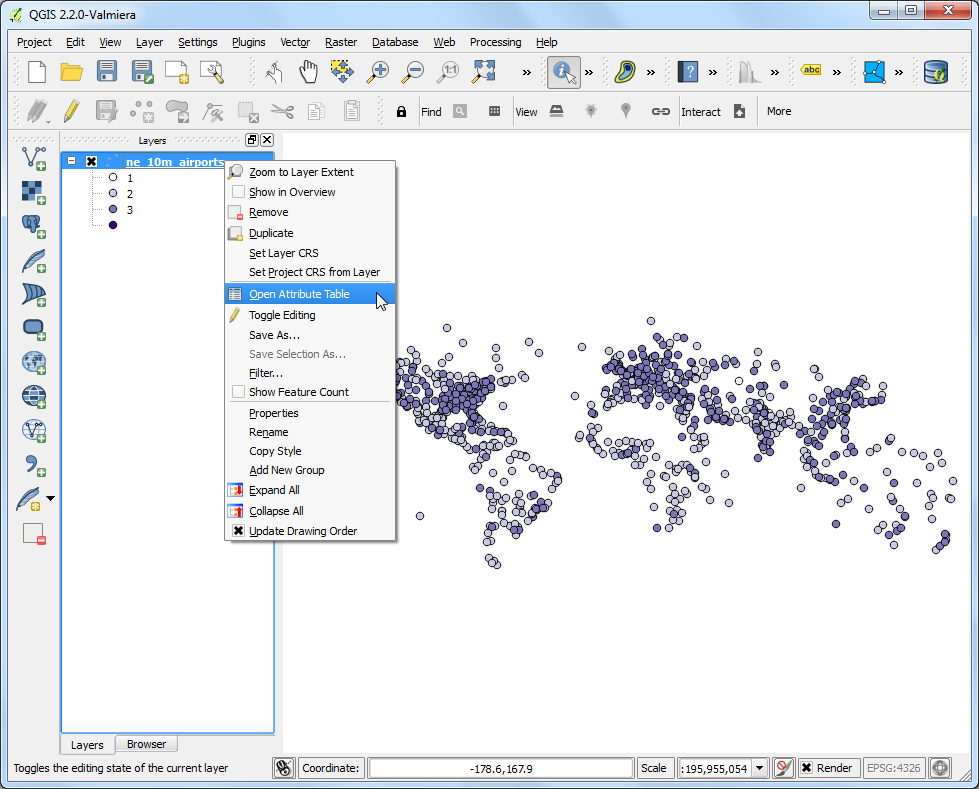

  1. Now we will explore some advanced features of this plugin that will allow you to customize the map further. If you noticed, the popup contained all the attributes of the feature. Some attributes are not very useful and overall the pop up looks ugly. We can replace the default popup with our own custom HTML to make it much better. This is achieved by added the custom HTML in a column named html_exp. Right-click the ne_10m_airports layer and select Open Attribute Table.

../_images/1357.png
  1. In the attribute table dialog, click the Toggle Editing button. Once the layer is in editing mode, click the Open Field Calculator button.

../_images/1453.png

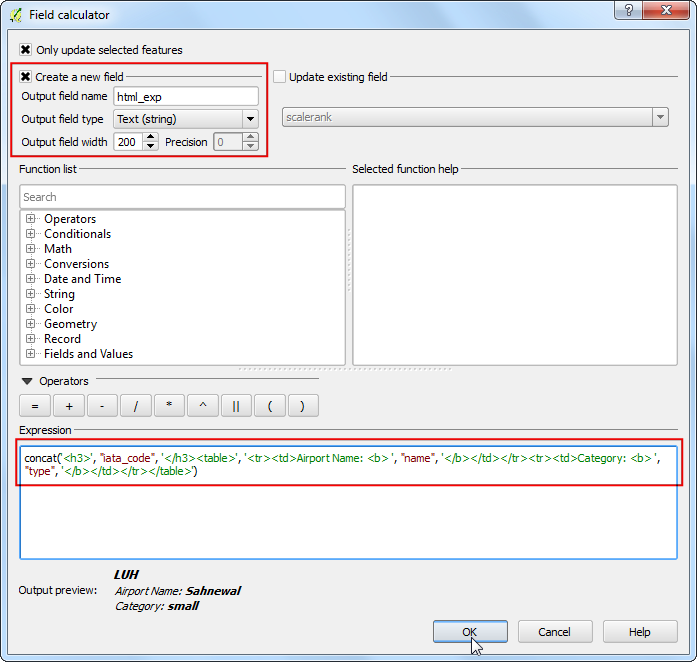

  1. Check the Create a new field box and enter html_exp as the Output field name. Choose Text (string) as the Output field type. Since we will be creating a long HTML string, choose 200 as the Output field width. Enter the following expression in the Expression area. The complex-looking expression simply defines a HTML table and substitutes cell values from attributes iata_code, name and type. Check the Output preview to ensure the expression is correct.

concat('<h3>', "iata_code", '</h3><table>', '<tr><td>Airport Name: <b> ',
"name", '</b></td></tr><tr><td>Category: <b> ', "type",
'</b></td></tr></table>')

Opomba

The shapefile format can contain a maximum of 254 characters in a field. If you want to store longer text in the field, choose another format.

../_images/1549.png
  1. Back in the Attribute Table window, you will see a new column at the end. Verify that your expression worked correctly and click the Toggle Editing button to save the changes.

../_images/1646.png
  1. Now export the map again using Web ‣ qgis2leaf ‣ Exports a QGIS Project to a working leaflet webmap.

../_images/1743.png

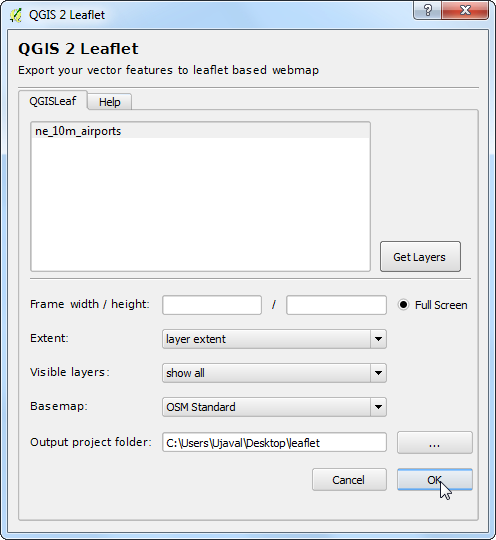

  1. Choose the options as before.

../_images/1840.png

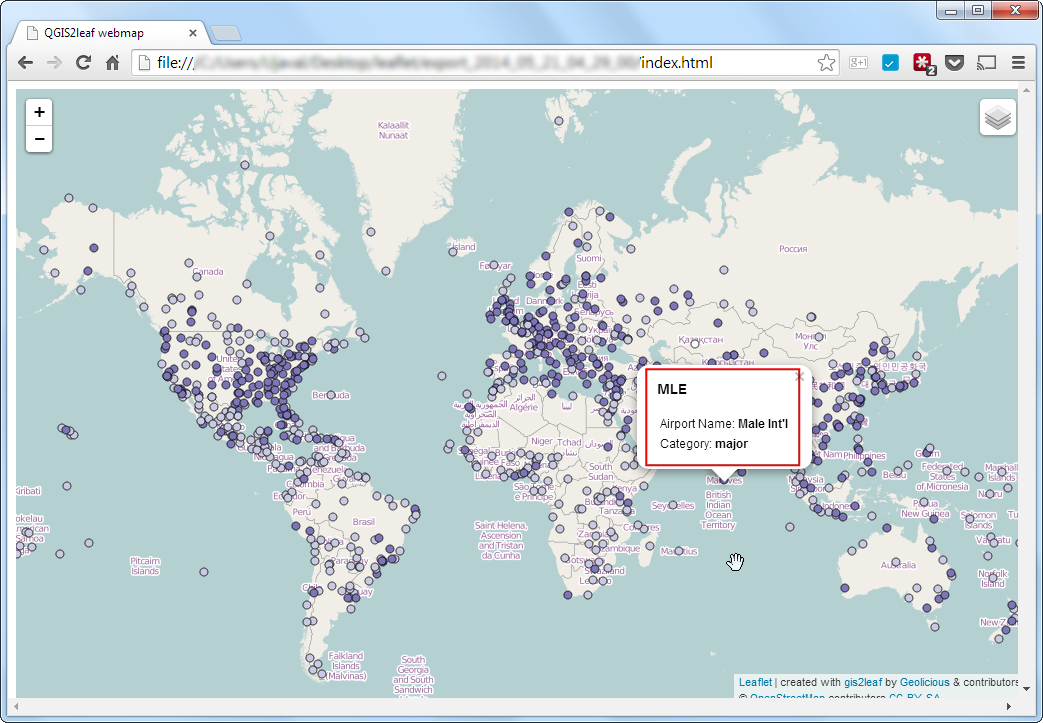

  1. Go to the output folder once the export process finishes. You will have a subfolder with the present timestamp. Locate the index.html file inside it and open it in a browser. Click on any feature and look at the popup. You will notice that it looks a lot cleaner and informative.

../_images/1931.png

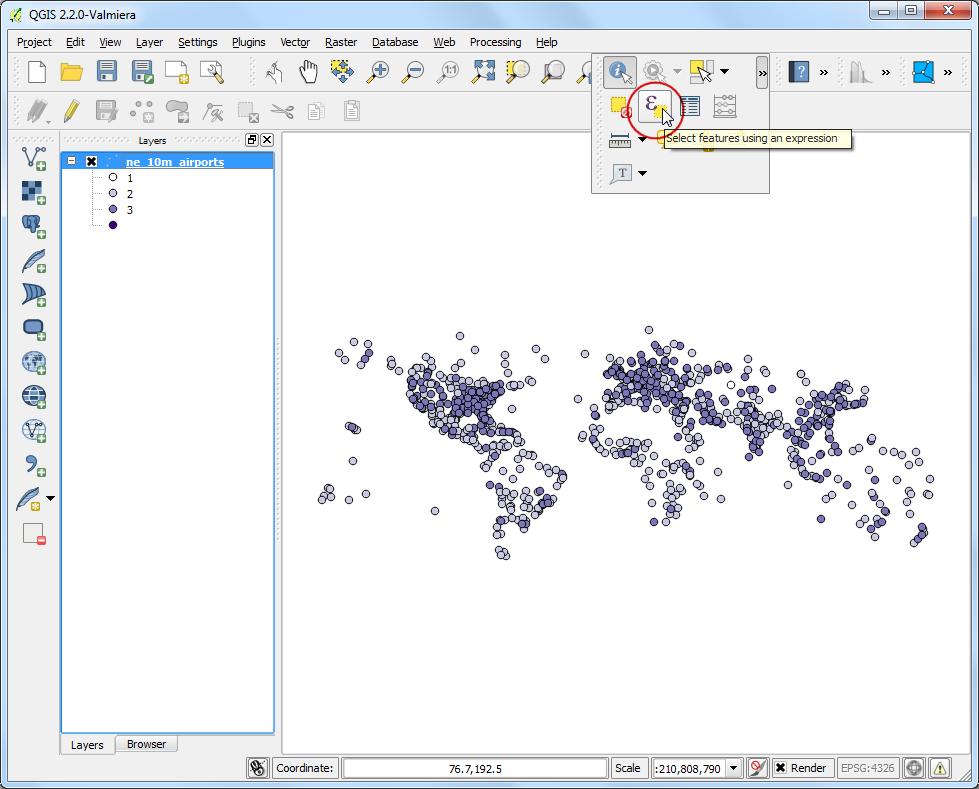

  1. Another useful feature of the qgis2leaf plugin is the ability to specify a custom icon to use with the web map. This is accomplished by specifying the path to the custom icon in a field called icon_exp. We will create a new layer containing only the major airports and style using a custom SVG icon. Locate the Select features using an expression tool from the toolbar.

../_images/2026.png

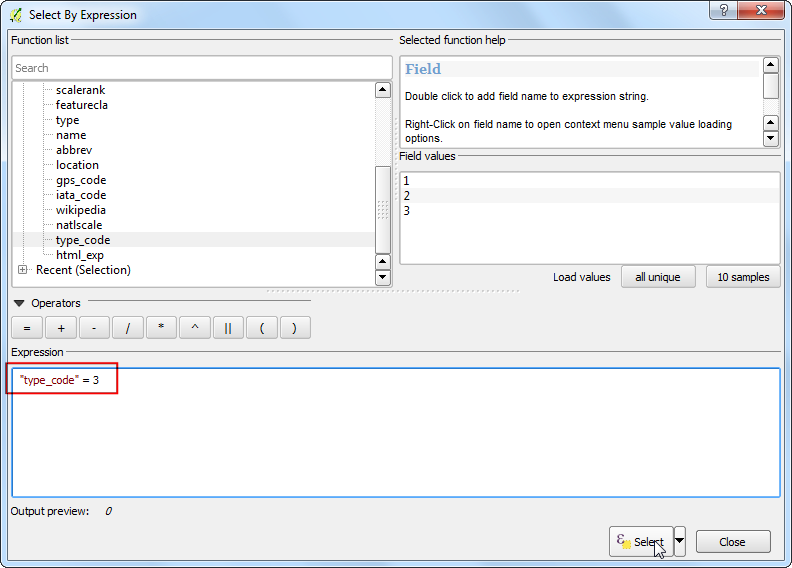

  1. Enter the expression below and press Select to select all major airports.

"type_code" = 3
../_images/2155.png

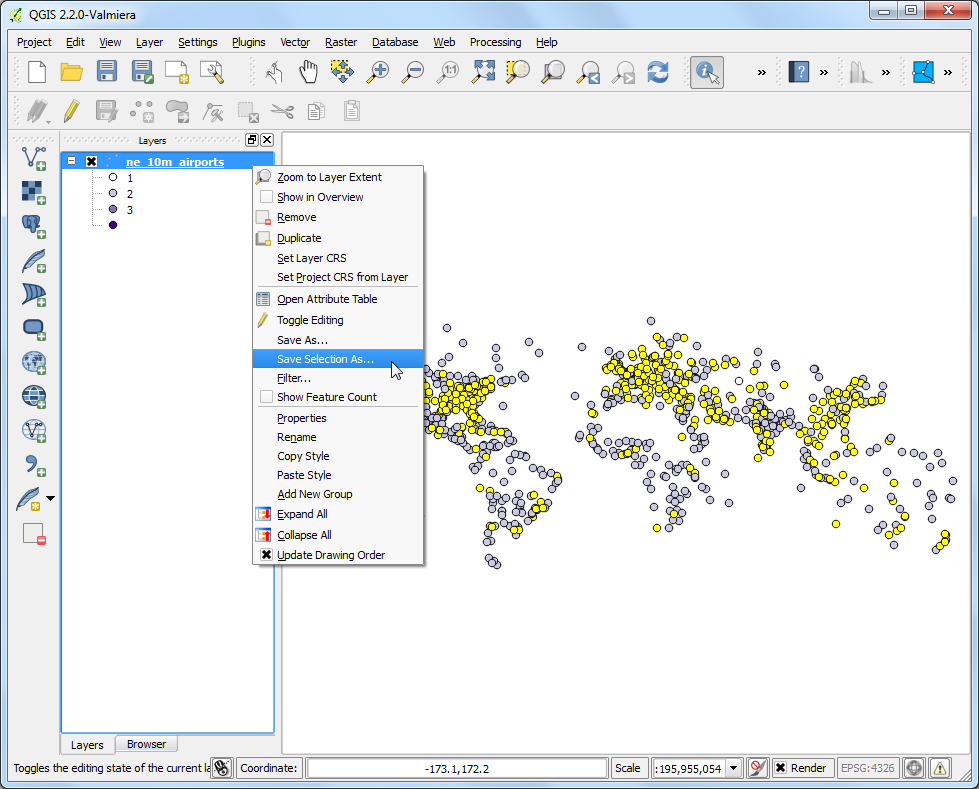

  1. Right-click the ne_10m_airports airports and select Save Selection As….

../_images/2227.png

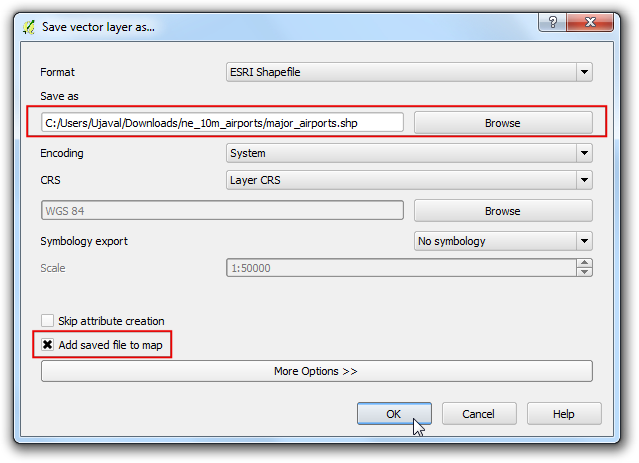

  1. In the Save vector layer as… dialog, name the output file as major_airports.shp. Check the Add saved file to map and click OK.

../_images/2324.png

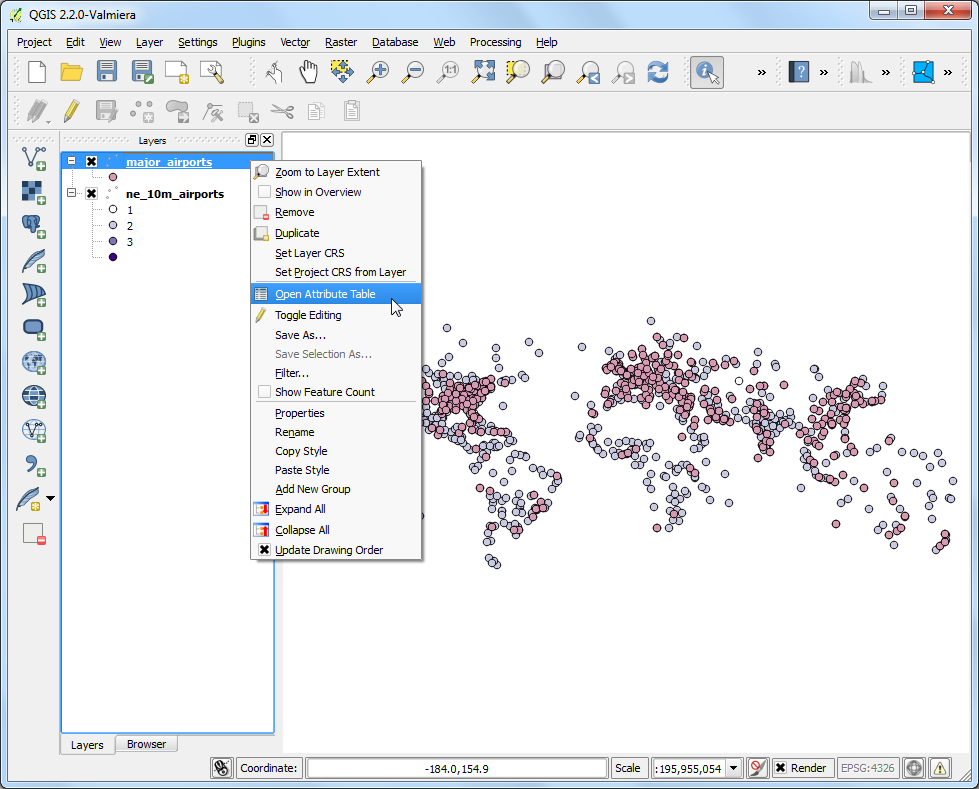

  1. Once the major_airports layer is loaded in QGIS, right-click it and select Open Attribute Table.

../_images/2424.png

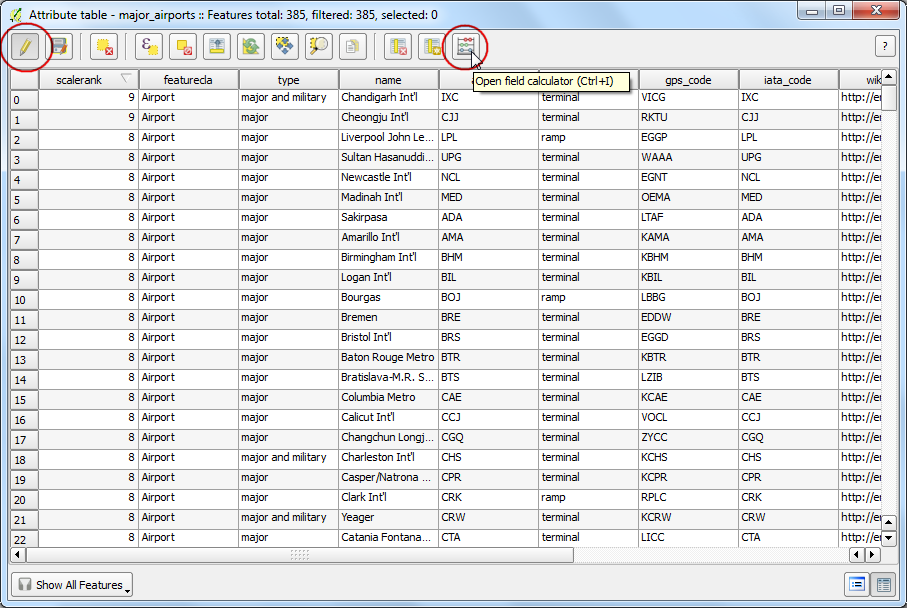

  1. In the attribute table dialog, click the Toggle Editing button. Once the layer is in editing mode, click the Open Field Calculator button.

../_images/2522.png

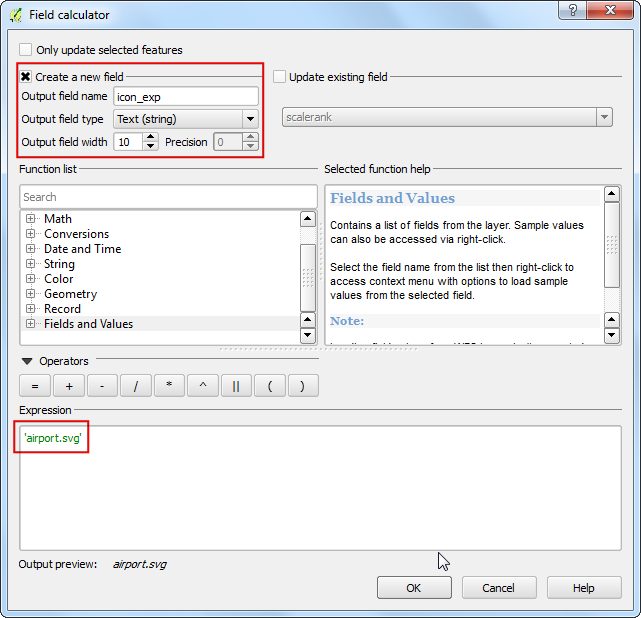

  1. In Field Calculator dialog, enter icon_exp as the Output field name. Make it a Text (string) type. In the Expression area, enter the following expression.

'airport.svg'
../_images/2620.png

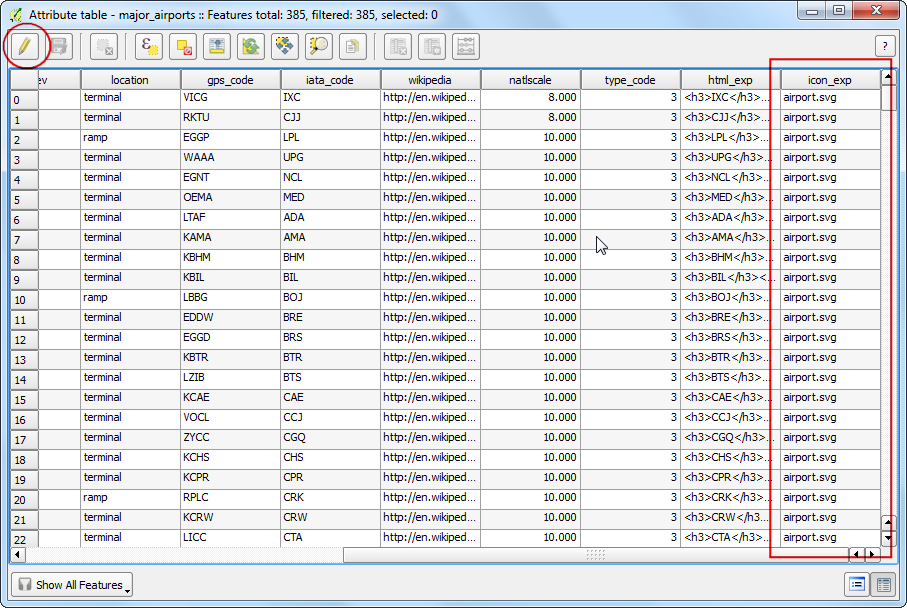

  1. Save your edits by clicking the Toggle Editing button in the Attribute Table.

../_images/2719.png

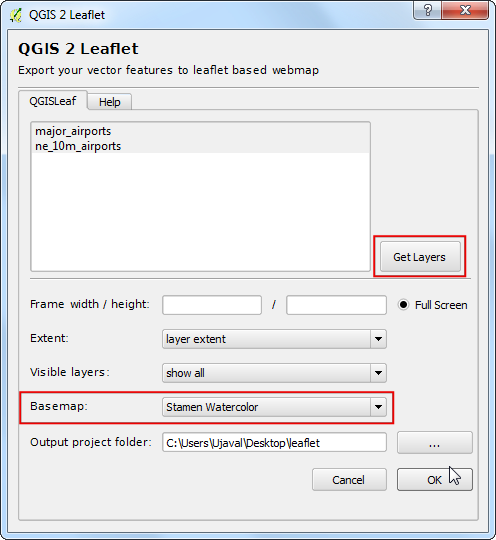

  1. Open the qgis2leaf plugin from Web ‣ qgis2leaf ‣ Exports a QGIS Project to a working leaflet webmap. Click Get Layers button to fetch both the layers from QGIS. There are many different pre-made tile layers availalbe for basemaps. In this map, we can try something different and load the Stamen Watercolor as the Basemap. Click OK.

../_images/2818.png

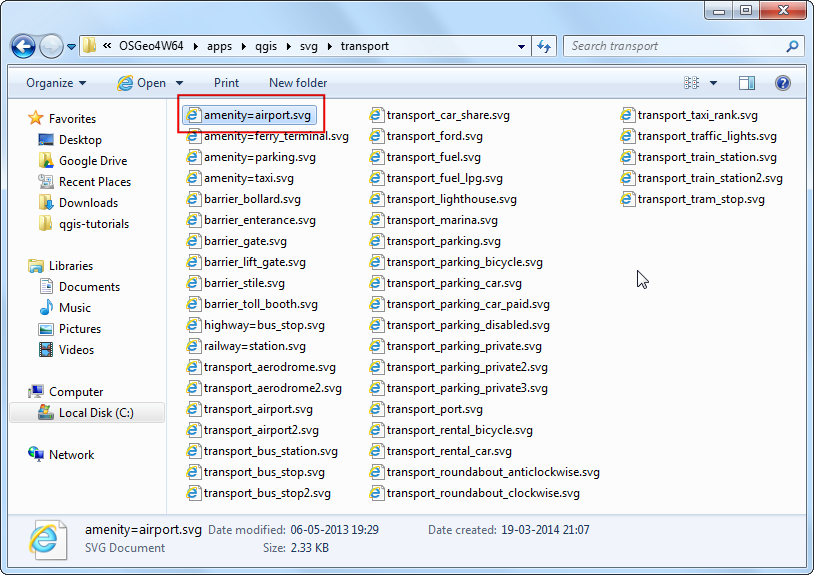

  1. If you remember we specified airport.svg as the icon for the airports. We need to add that icon manually to the output directory. QGIS comes with a large collection of icons. On Windows, these icons are located at C: ‣ OSGEO4W64 ‣ apps ‣ qgis ‣ svg. The path may differ depending on your platform and install type. Locate that directory and choose an icon you like. For our map, we can try the amenity=airport.svg icon located under transport category.

../_images/2917.png

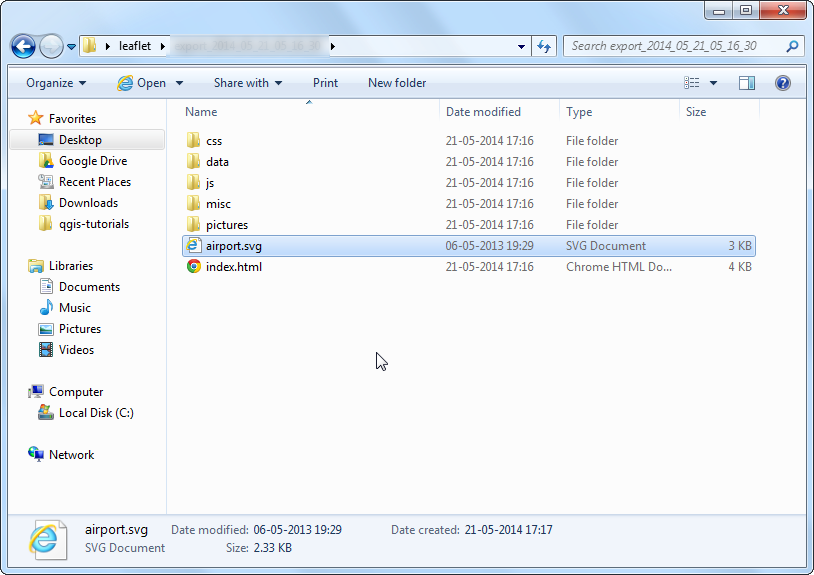

  1. Copy and paste this icon in the output directory you had specified when exporting the map. Rename it as airport.svg.

../_images/3016.png

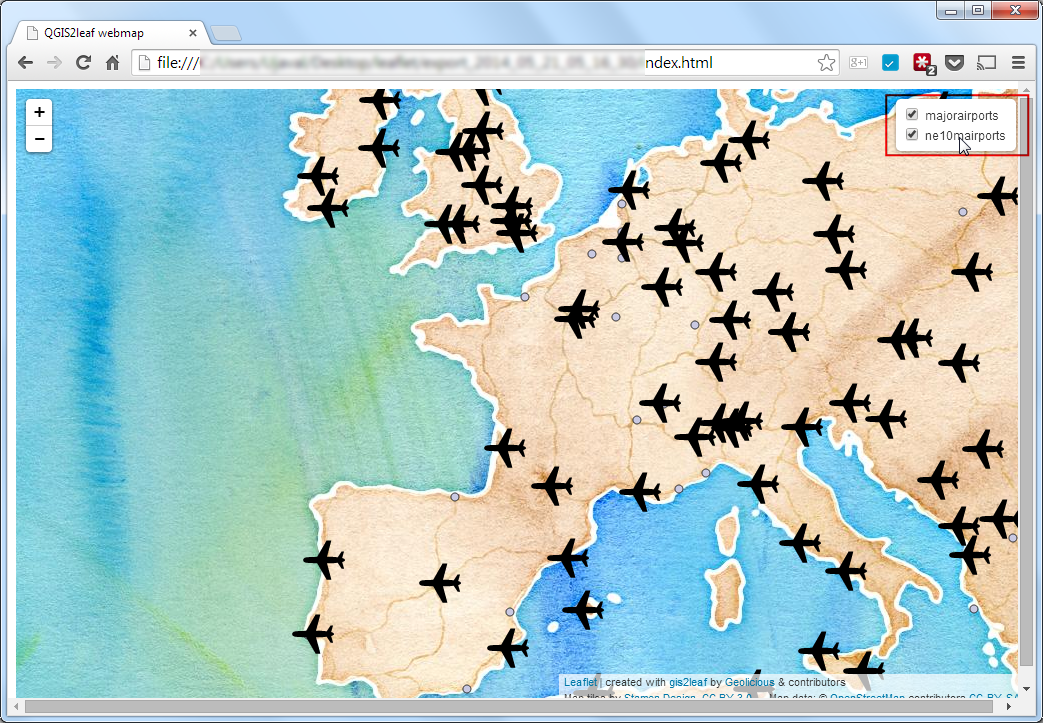

  1. Now open the index.html file located in the folder. You will see a beautiful basemap with our custom icons for the major airports. Also notice the layer panel at top-right corner which has layer display control for both the layers.

../_images/3119.png

Hope this tutorial gives you a head start in creating web maps. Below is the live interactive map created for this tutorial.
