Running Processing Algorithms via Python (QGIS3)

The Processing Toolbox in QGIS contain an ever-growing collection of geoprocessing tools. The toolbox provides an easy batch processing interface to run any algorithm on a large number of inputs. See Batch Processing using Processing Framework (QGIS3). But there are cases where you need to incorporate a little bit of custom logic in your batch processing. As all the processing algorithms can be run programmatically via the Python API, you can run them via the Python Console. This tutorial shows how to run a processing algorithm via the Python Console to perform a custom geoprocessing task in just a few lines of code. Please review the Getting Started With Python Programming (QGIS3) tutorial to get familiar with the basics of the Python Scripting environment in QGIS.

Overview of the Task

We will use 12 gridded raster layers representing precipitation for each month of year and calculate average monthly rainfall for all zip codes in the Seattle area.

Other skills you will learn

  • How to delete a column (i.e. field) from a vector layer.

Get the data

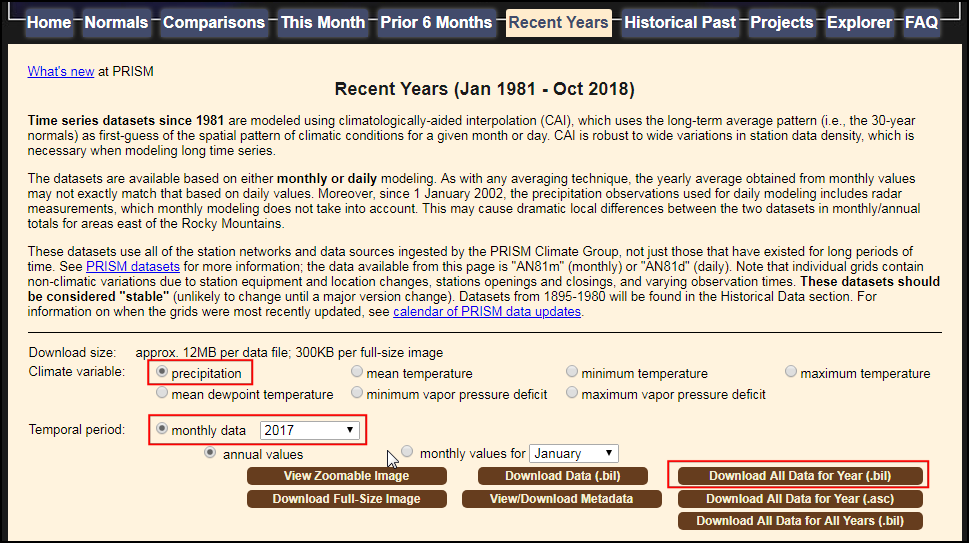

The PRISM Climate Group gathers climate observation and provides historic and current climate data for the conterminous US. Head over to the Recent Years data page and download the monthly precipitation data for the year 2017 in BIL format.

../../_images/data14.png

City of Seattle Open Data portal provides free and open data for the city. Search for and download the Zip Codes data in the shapefile format.

For convenience, you may directly download a copy of both the datasets from the links below:

PRISM_ppt_stable_4kmM3_2017_all_bil.zip

Zip_Codes.zip

Data Source [PRISM] [CITYOFSEATTLE]

Procedure

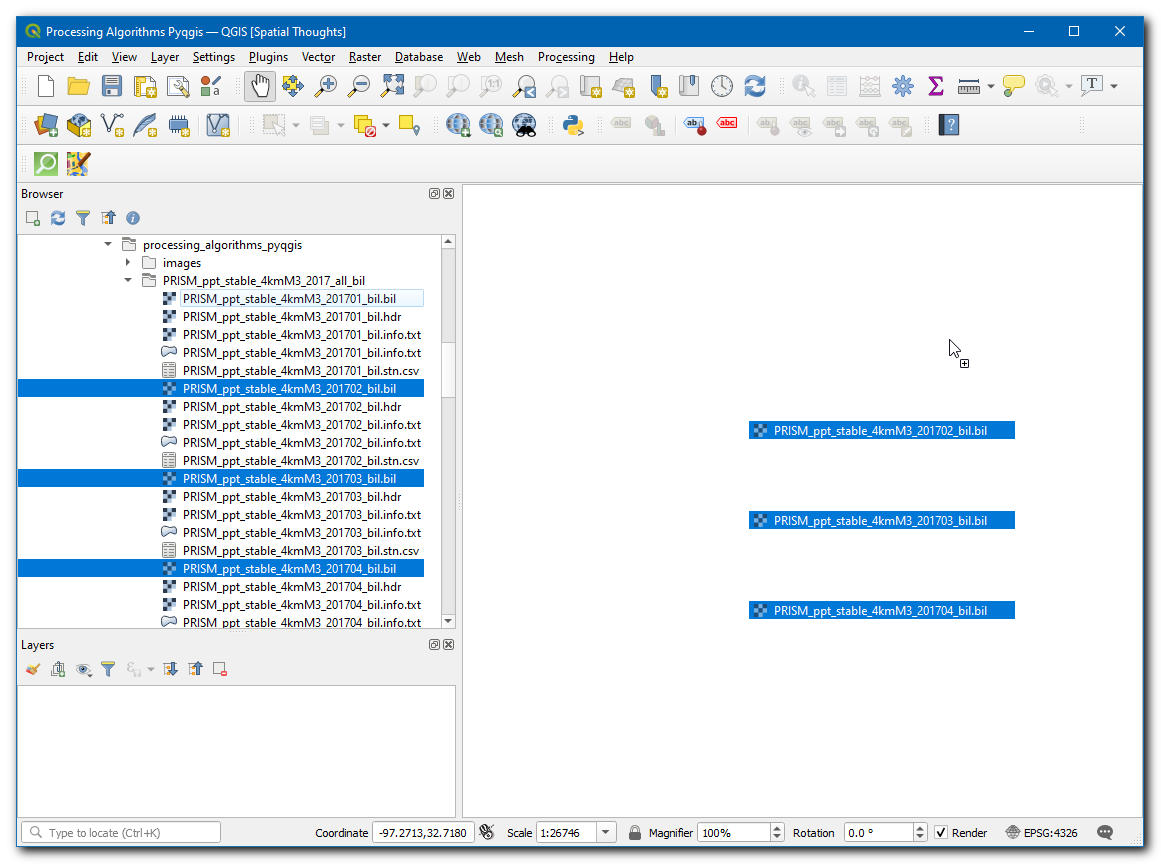

  1. Unzip the PRISM_ppt_stable_4kmM3_2017_all_bil.zip file. Locate the PRISM_ppt_stable_4kmM3_2017_all_bil folder in the QGIS Browser and expand it. The folder contains 12 individual layers for each month. Hold the Ctrl key and select the .bil files for all 12 months. Once selected, drag them to the canvas.

../../_images/1106.png

Opomba

The data is provided in the BIL format. Each layer is presented with a set of files .bil file containing the actual data, a .hdr file describing the data structure and a .prj file containing the projection information. QGIS can load the .bil file and provided the other files exist in the same directory.

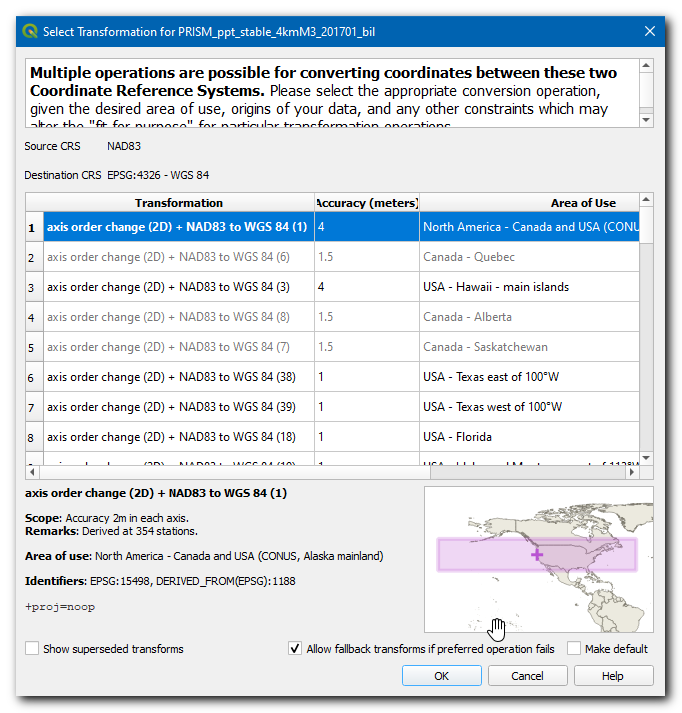

  1. A Select Transformation of PRISM_ppt_stable_4kmM3_2017_all_bil dialog box will appear, leave the selection to default and click OK.

../../_images/268.png

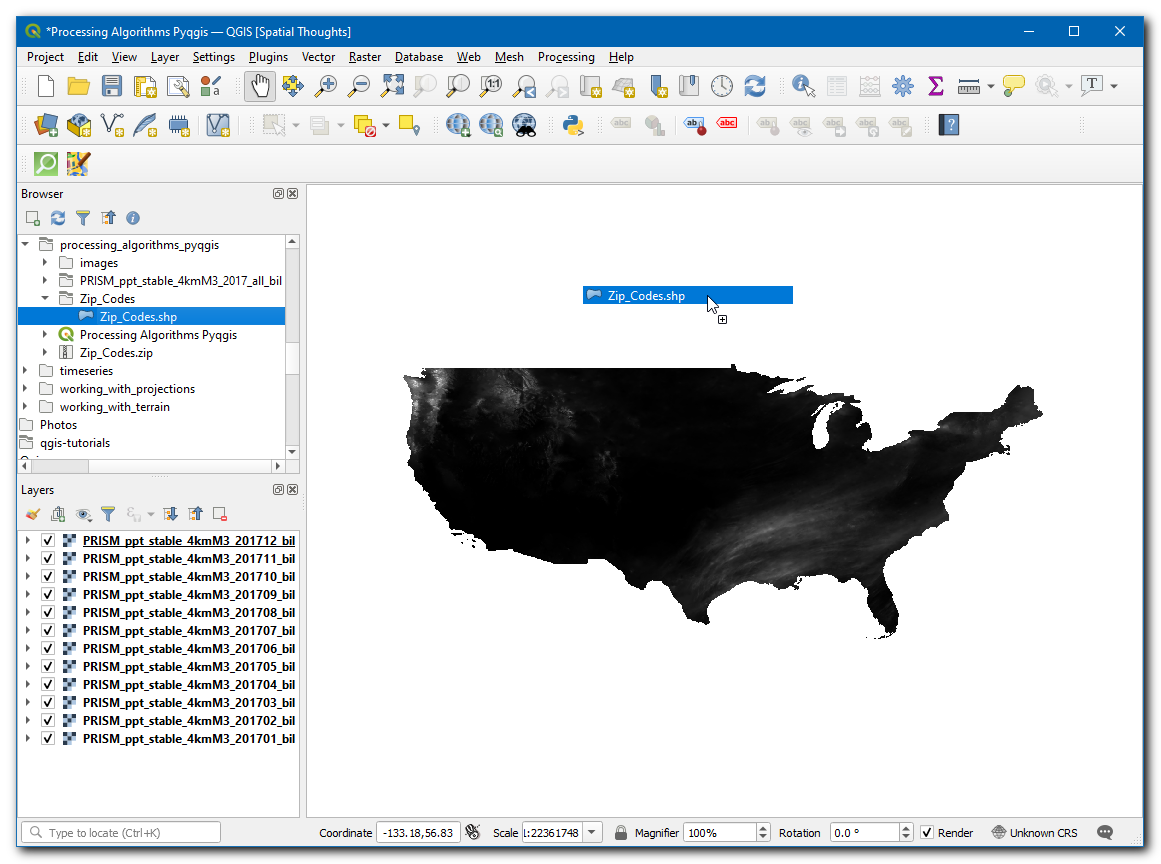

  1. Next, unzip the Zip_Codes.zip file and extract the shapefile to a folder. Locate the Zip_Codes folder and expand it. Drag the Zip_Codes.shp file to the canvas.

../../_images/339.png

Opomba

The unzip step is important because the Zonal Statistics algorithm works by adding a new field to the layer. If the layer is zipped, QGIS cannot update the layer.

  1. Right-click the Zip_Codes layer and select Zoom to Layer. You will see the zip code polygons for the city of seattle and neighboring areas.

../../_images/423.png

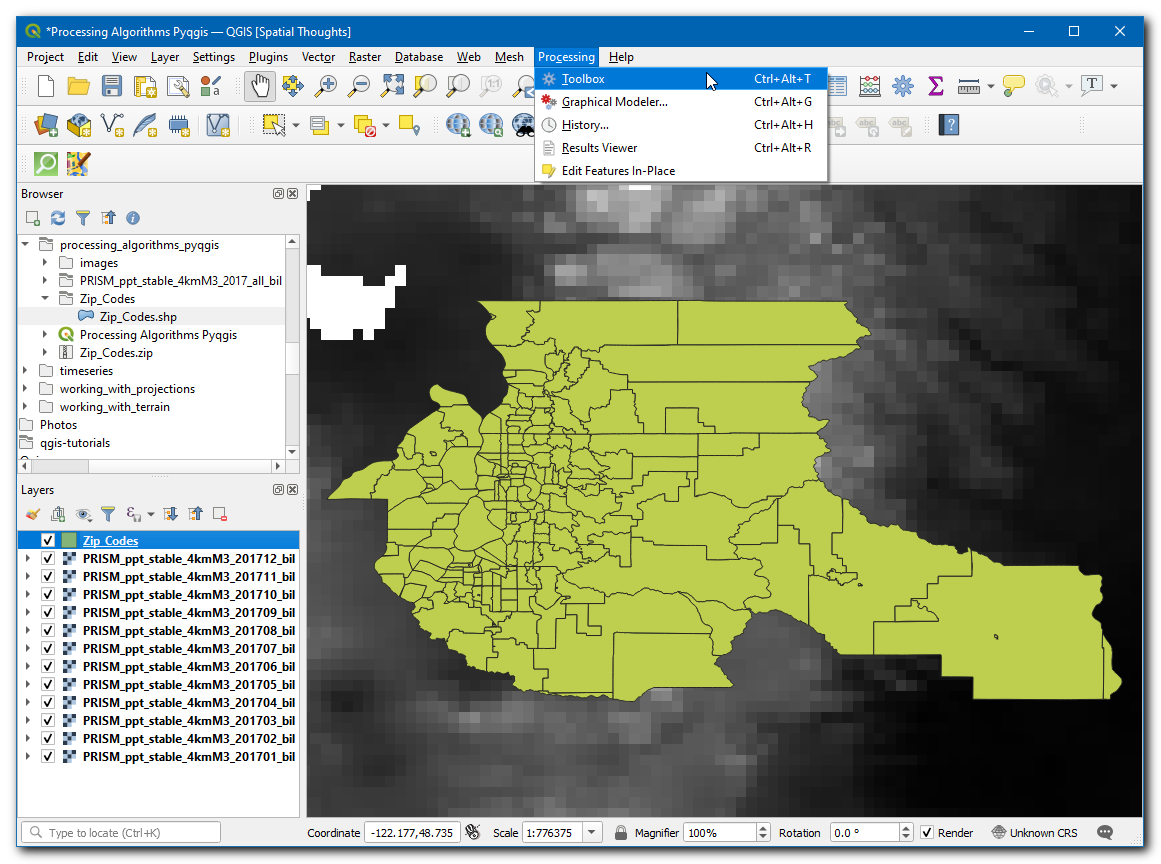

  1. Go to Processing ‣ Toolbox.

../../_images/523.png

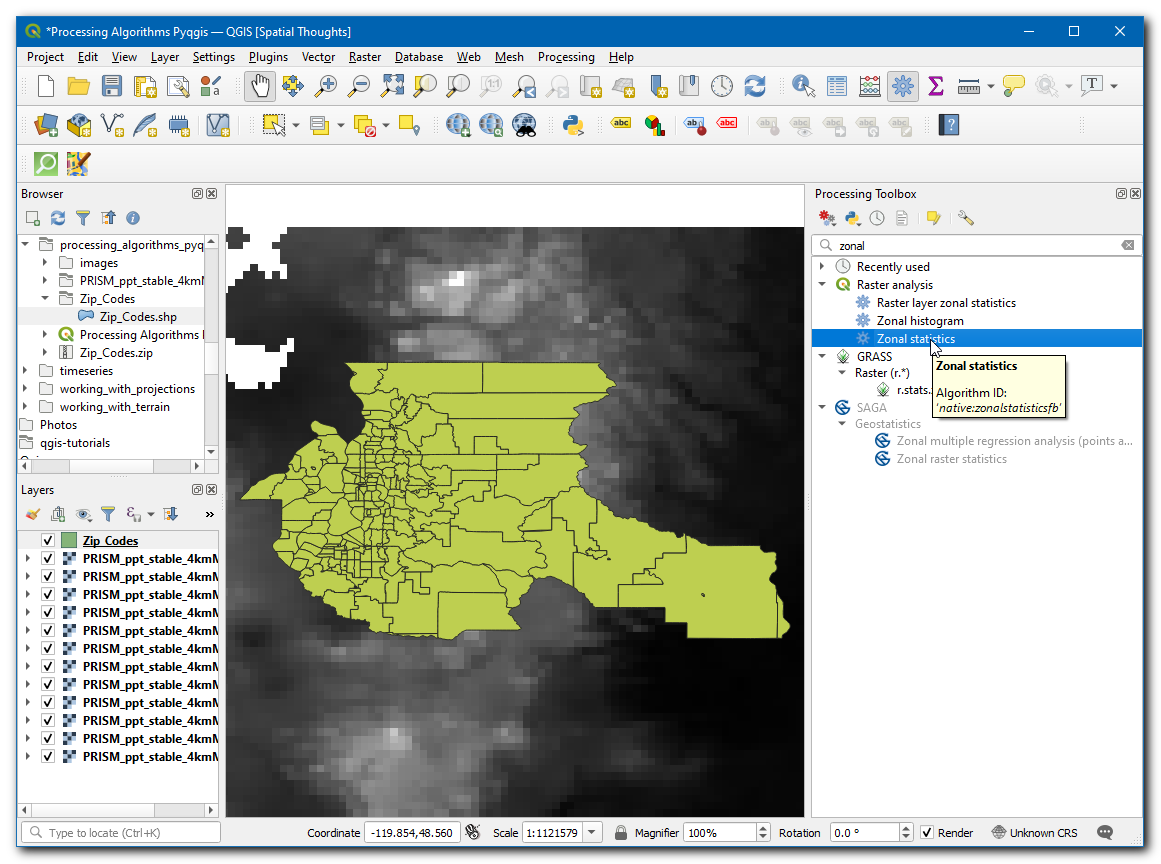

  1. The algorithm to sample a raster layer using vector polygons is known as Zonal statistics. Search for the algorithm in the Processing Toolbox. Select the algorithm and hover your mouse over it. You will see a tooltip with the text Algorithm ID: ‚native:zonalstatistics‘. Note this id which will be needed to call this algorithm via the Python API. Double-click the Zonal Statistics algorithm to launch it.

../../_images/623.png

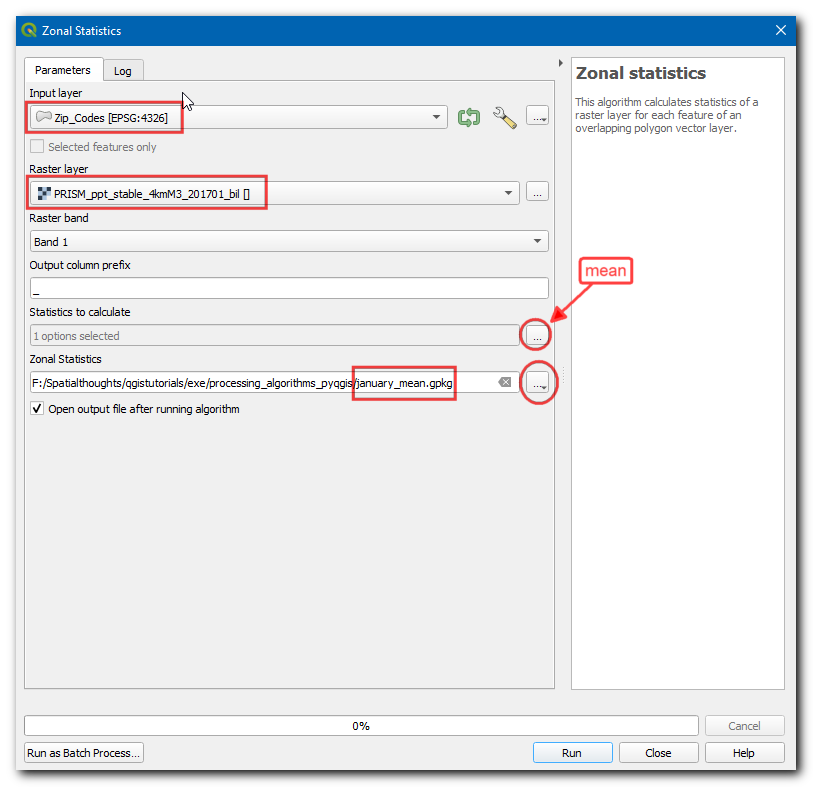

  1. We will do a manual test run of the algorithm for a single layer. This is a useful way to check if the algorithm behaves as expected and also an easy way to find out how to pass on relevant parameters to the algorithm when using it via Python. In the Zonal Statistics dialog, select Zip_Codes as the Input layer PRISM_ppt_stable_4kmM3_201701_bil as the Raster Layer and, leave other parameters to default. Click the button next to Statistics to calculate and select only Mean, next click the button next to Zonal Statistics and save the layer as january_mean.gpkg Click Run .

../../_images/722.png

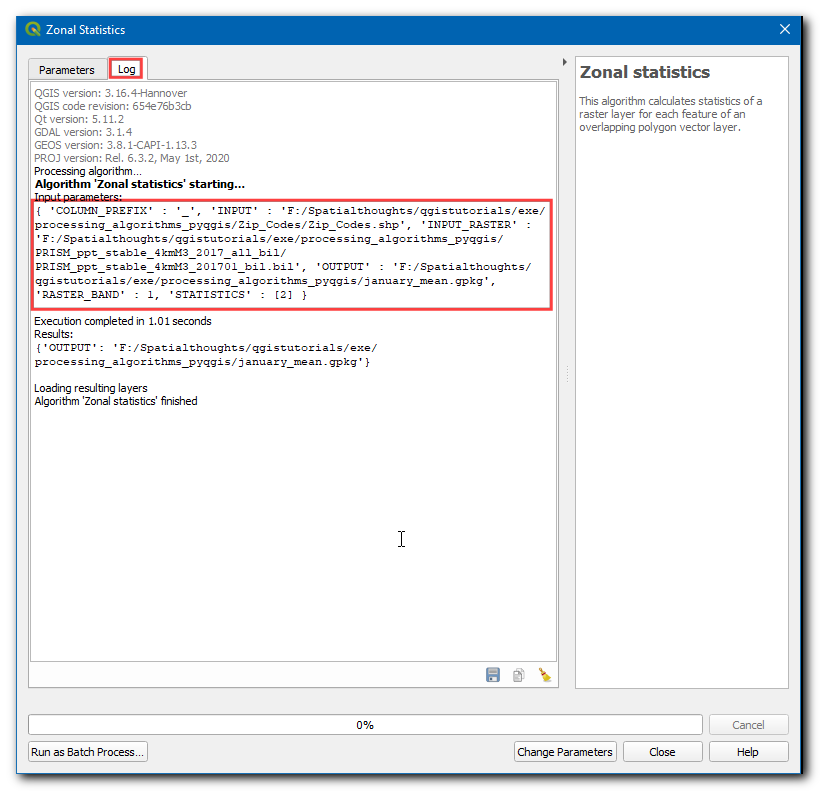

  1. Once the algorithm finishes, switch to the Log tab. Make a note of the Input Parameters that were passed to the algorithm. Click Close.

../../_images/822.png

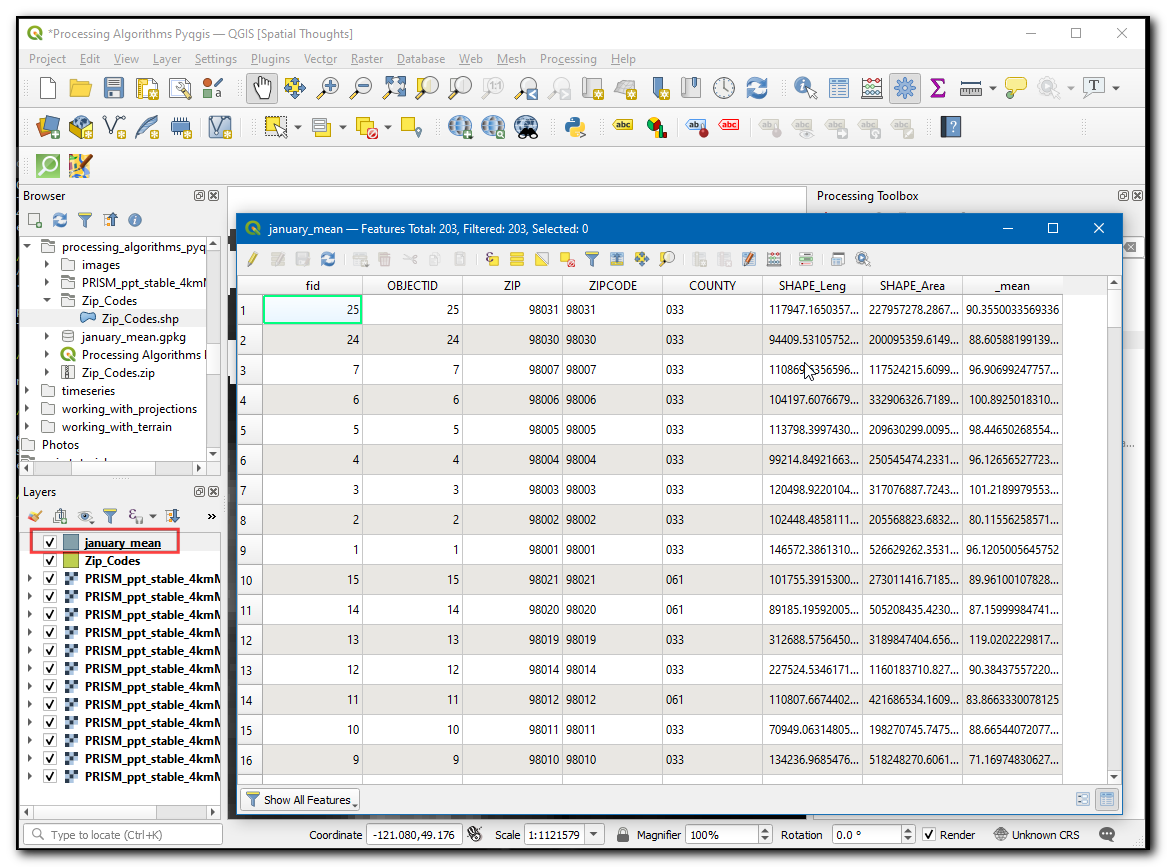

  1. Now a new layer january_mean will be added to the canvas. Let’s check the results, right-click on the layer and select Open Attribute Table. This particular algorithm modifies the input zone layer in-place and adds a new column for every statistic that was selected. As we had selected only Mean value, a new column named _mean is added to the table. The _ was the default prefix. When we run the algorithm for layers of each month, it will be useful to specify a custom prefix with the month number so we can easily identify the mean values for each month (i.e. 01_mean, 02_mean etc.). Specifying this custom prefix is not possible in the Batch Processing interface of QGIS and if we ran this command using that interface, we would have to manually enter the custom prefix for each layer. If you are working with a large number of layers, this can be very cumbersome. Hence, we can add this custom logic using the Python API and run the algorithm in a for-loop for each layer.

../../_images/922.png

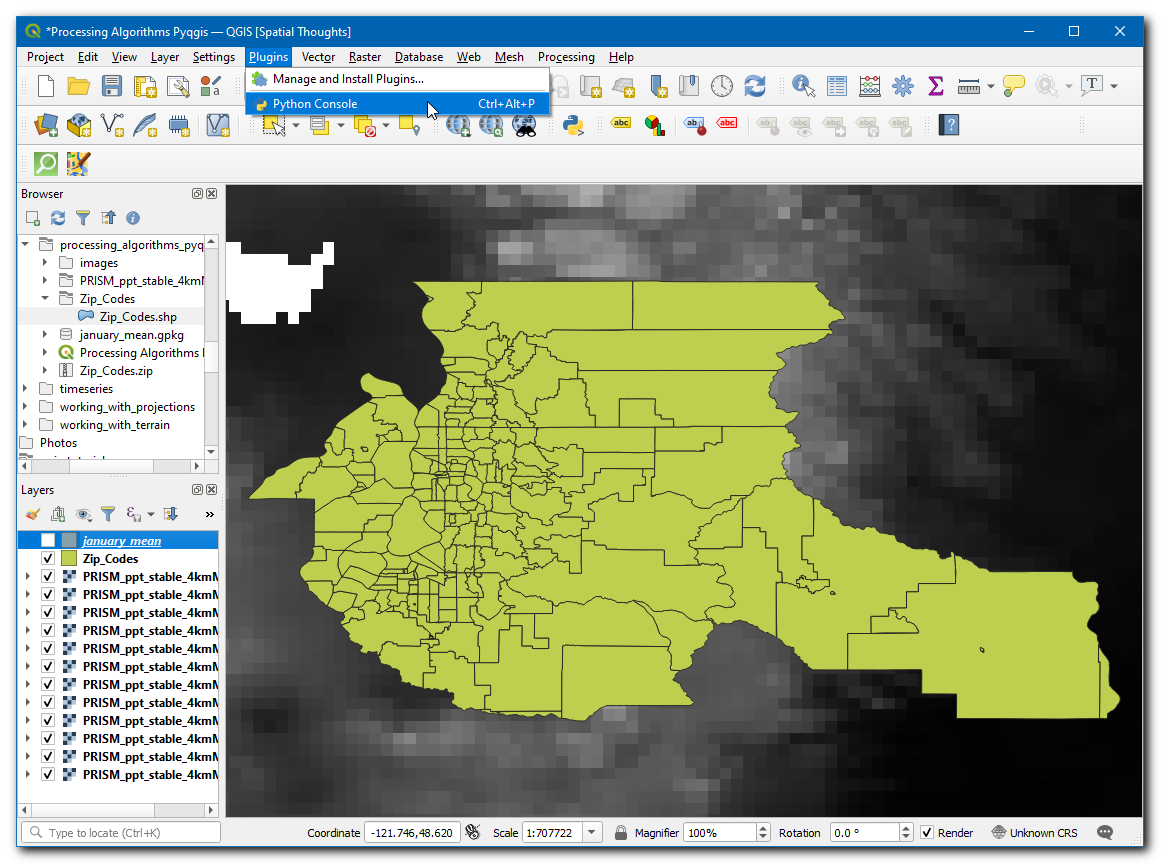

  1. Back in the main QGIS window, go to Plugins ‣ Python Console.

../../_images/1022.png

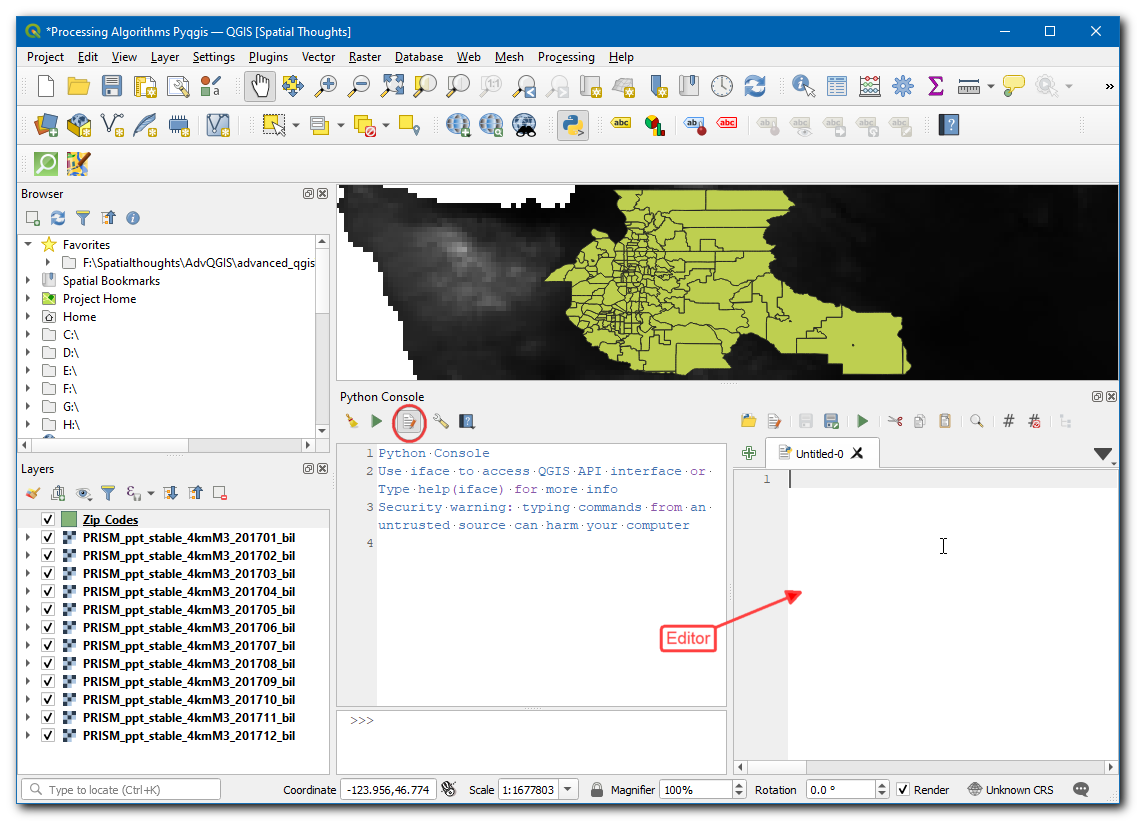

  1. Click on the show editor button. This will open the python editor were a bunch of python code can be written and executed with a single click of a button.

../../_images/1126.png

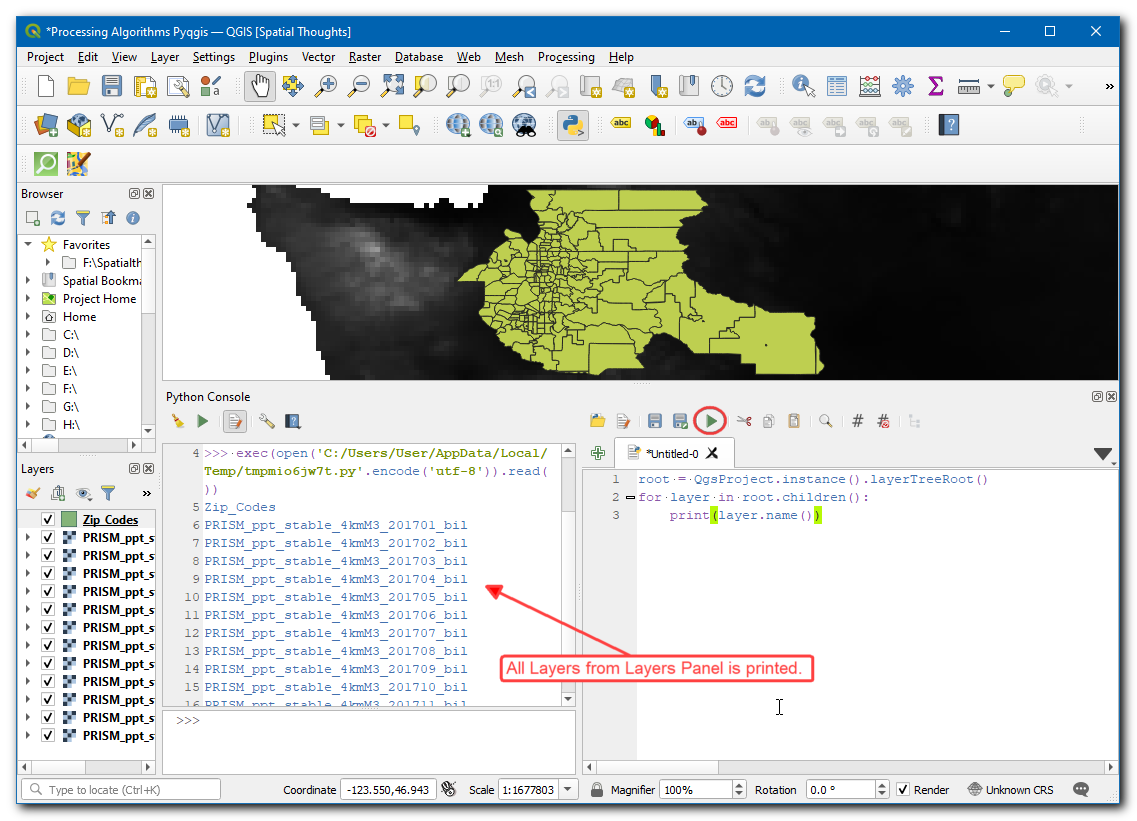

  1. To run the processing algorithm via Python, we need to access names of all the layers. Enter the following code in the editor and click on the Play button. You will see the names of all layers printed in the console.

root = QgsProject.instance().layerTreeRoot()
for layer in root.children():
  print(layer.name())
../../_images/1223.png

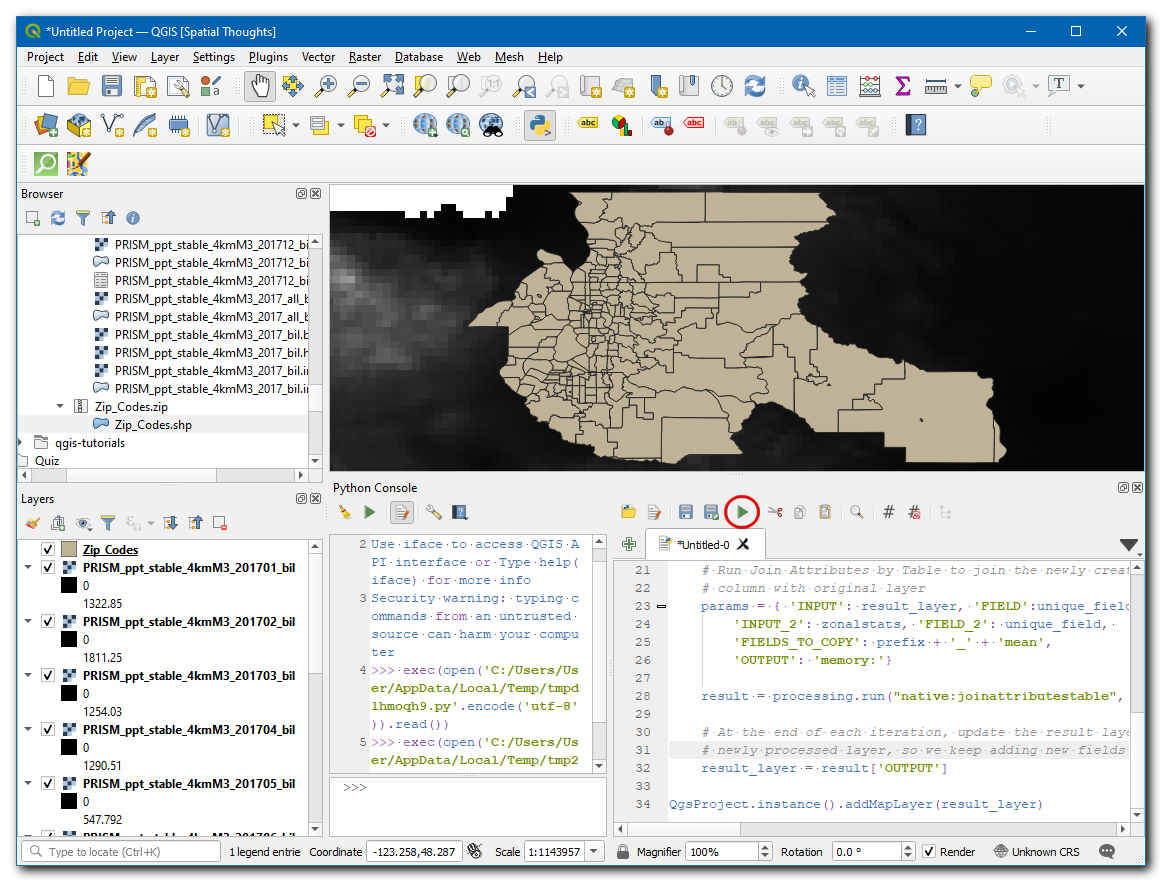

  1. Now, lets calculate Mean across all months and create an single layer by adding 12 columns for each month (i.e) 01_mean for January, 02_mean for February and so on. This can be achieved by custom prefixing. So, for adding a custom prefix, we need to look at the layer name and extract a substring representing the month number. Enter the following code to iterate over all raster layers, extract the custom prefix and run the native:zonalstatisticsfb algorithm using it.

root = QgsProject.instance().layerTreeRoot()

input_layer = 'Zip_Codes'
result_layer = input_layer
unique_field = 'OBJECTID'

# Iterate through all raster layers
for layer in root.children():
  if layer.name().startswith('PRISM'):
    # Run Zonal Stats algorithm

    prefix = layer.name()[-6:-4]
    params = {'INPUT_RASTER': layer.name(),
        'RASTER_BAND': 1, 'INPUT': input_layer,
        'COLUMN_PREFIX': prefix+'_', 'STATISTICS': [2],
        'OUTPUT': 'memory:'
        }
    result = processing.run("native:zonalstatisticsfb", params)
    zonalstats = result['OUTPUT']

    # Run Join Attributes by Table to join the newly created
    # column with original layer
    params = { 'INPUT': result_layer, 'FIELD':unique_field,
        'INPUT_2': zonalstats, 'FIELD_2': unique_field,
        'FIELDS_TO_COPY': prefix + '_' + 'mean',
        'OUTPUT': 'memory:'}

    result = processing.run("native:joinattributestable", params)

# At the end of each iteration, update the result layer to the
# newly processed layer, so we keep adding new fields to the same layer
result_layer = result['OUTPUT']

QgsProject.instance().addMapLayer(result_layer)
../../_images/1322.png

Opomba

The native:zonalstatisticsfb will produce new layers for each month by aggregating each month mean as new layer. But to get an single layer by combaining it, we need to join all the new layers by using native:joinattributestable.

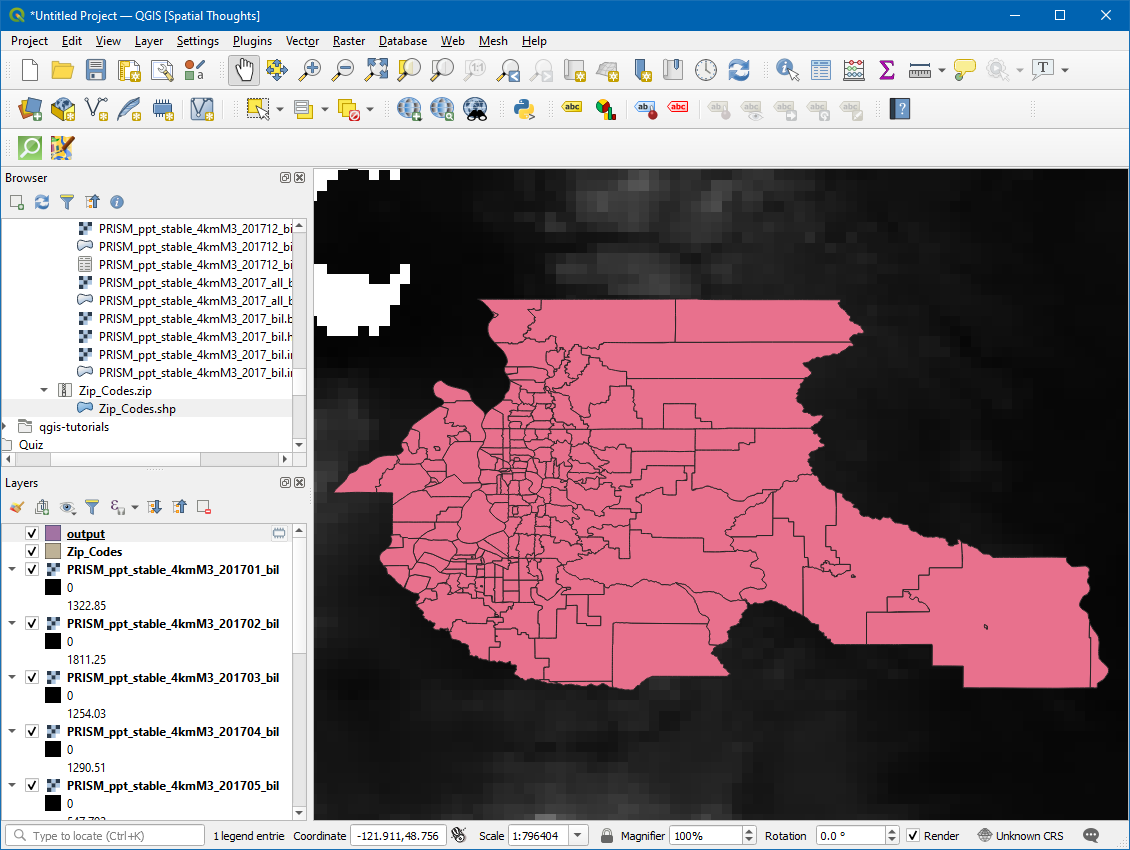

  1. Once the processing finishes, a new layer output will be added to canvas, right-click on the layer and select Open Attribute Table.

../../_images/1421.png

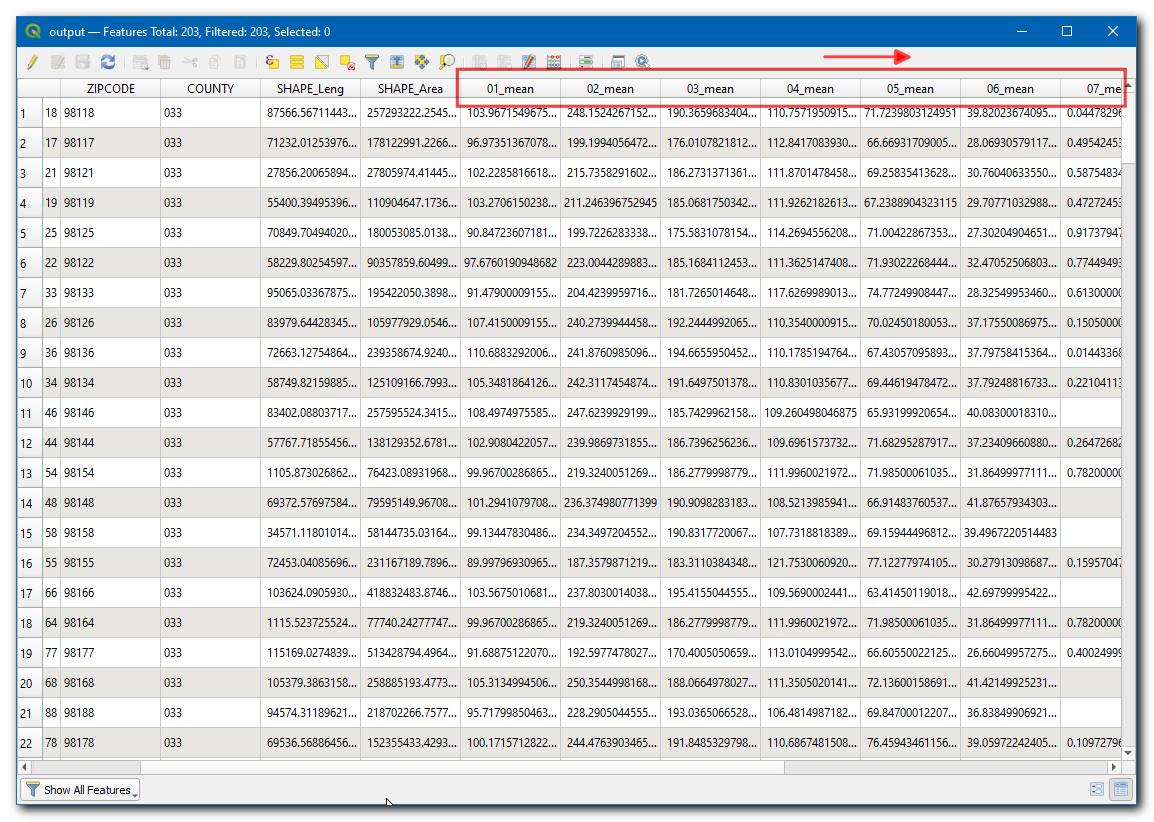

  1. You will see 12 new columns added to the table with custom prefixes and mean precipitation values extracted from the raster layers.

../../_images/1520.png
