Searching and Downloading OpenStreetMap Data (QGIS3)¶
Getting high quality data is essential for any GIS task. One great resource for free and openly licensed data is OpenStreetMap(OSM) . The OSM database consists of all types of mapping data - streets, local data, building polygons, administrative boundaries etc. Getting access to OSM data in a GIS format in QGIS is possible via the QuickOSM plugin. This tutorial explains the process for searching, downloading and using this plugin.
Overview of the task¶
We will extract locations of all bars and pubs in London from the OpenStreetMap database and save it as a vector layer.
Other skills you will learn¶
How to chain multiple queries in QuickOSM plugin.

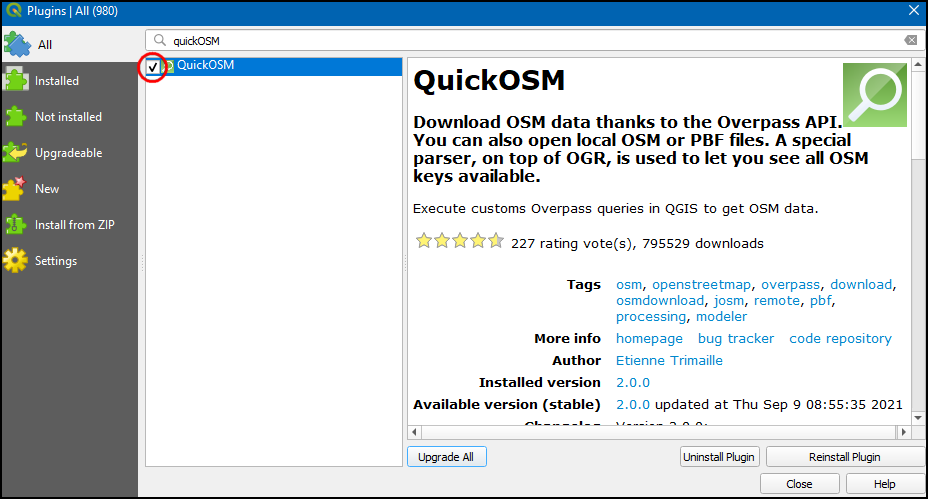

Search and install the QuickOSM plugin from the QGIS Official Plugin Repository. See Χρησιμοποιώντας Πρόσθετες Λειτουργίες for instructions on downloading plugins. Make sure you have the checkbox selected. Click Close.

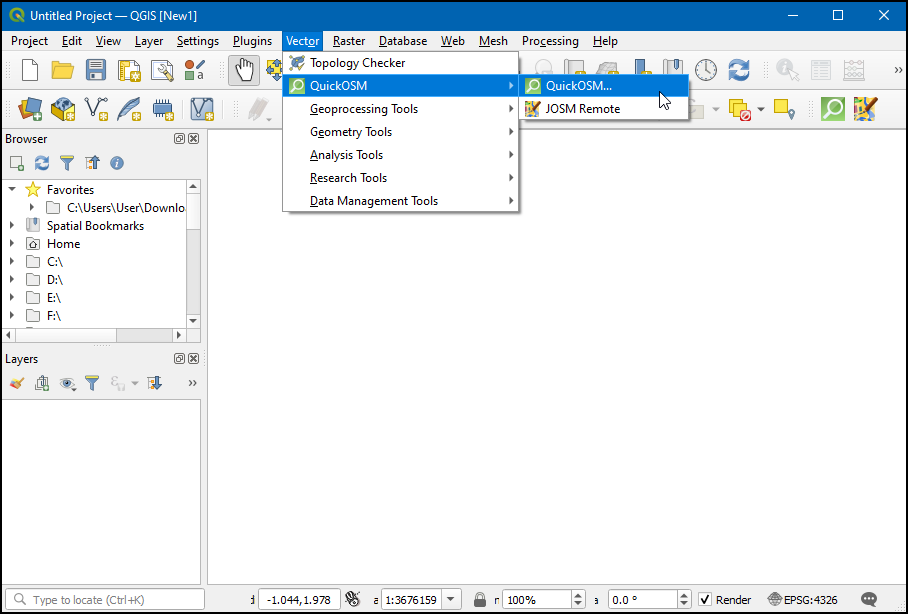

Once installed, launch the plugin from.
In the Quick query tab, you can set a filter to select a subset. The attributes of the map features in the OSM database are stored as Tags. Tags are represented with a key and a value. The key is a topic and a value is a specific form. See the OSM Map Features wiki page for a comprehensive list of tags for various types of features. Bars are represented using the tag
amenity:barand pubs with the tag

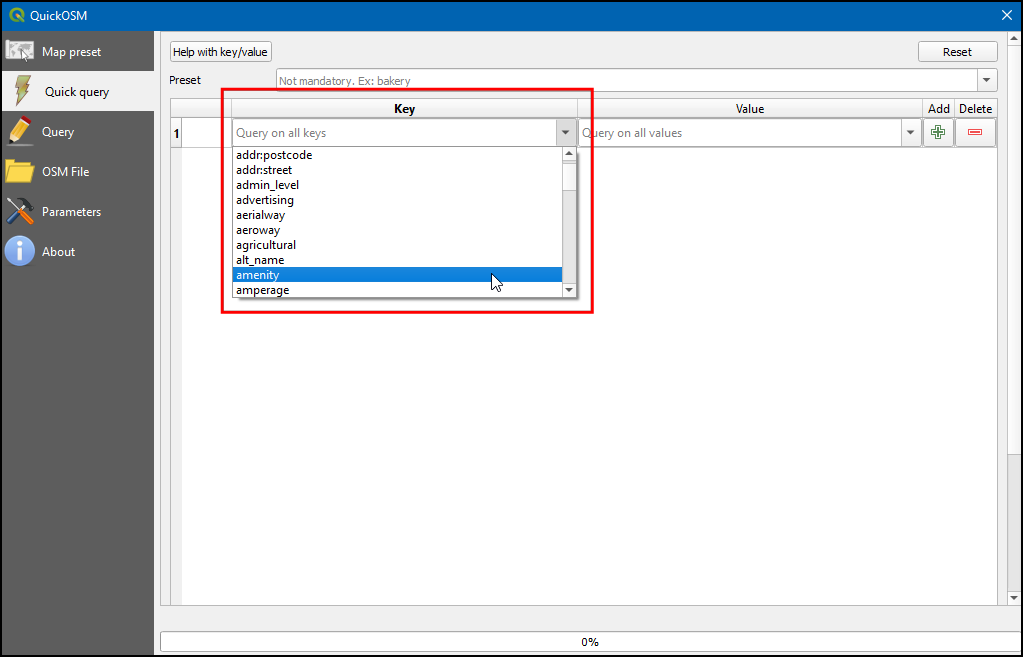

amenity:pub. We will first extract the bars. Select
amenityas the Key from the drop-down menu.

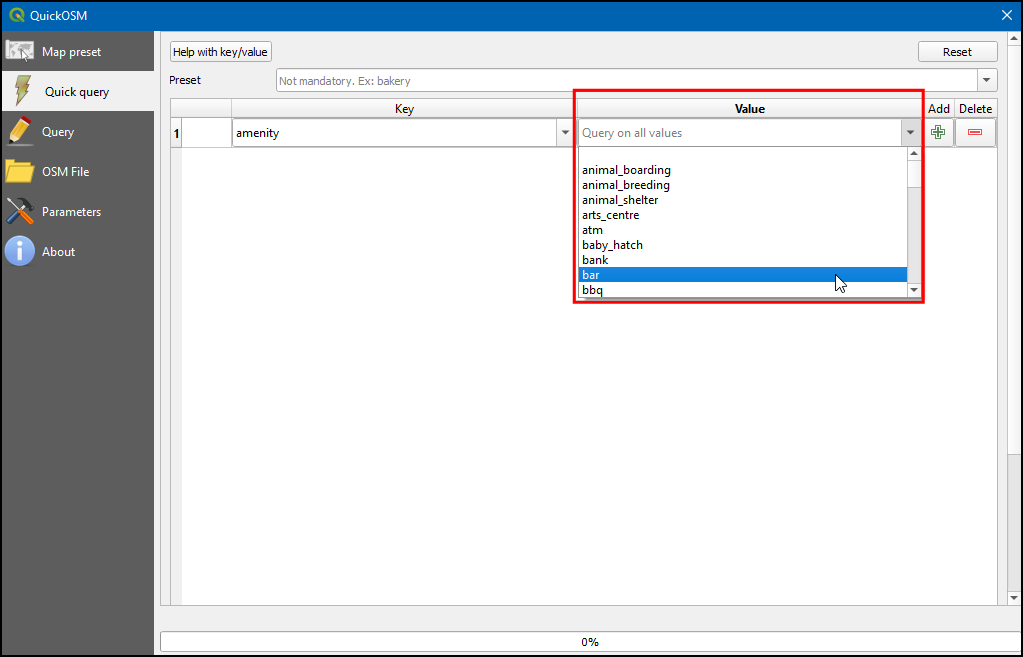

barfrom the Value drop-down menu.

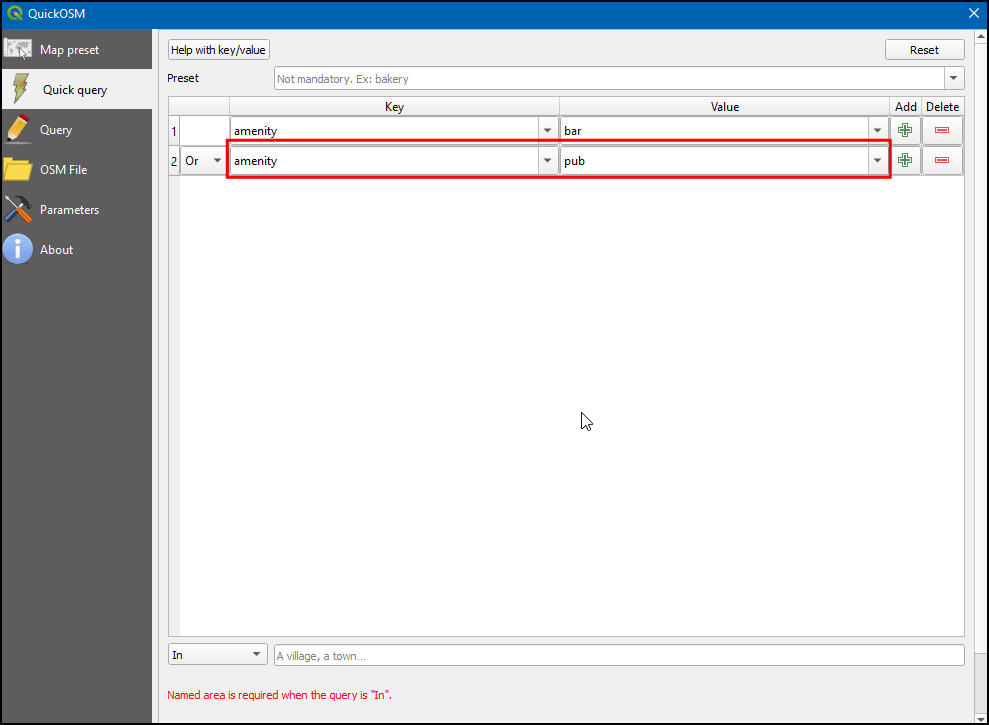

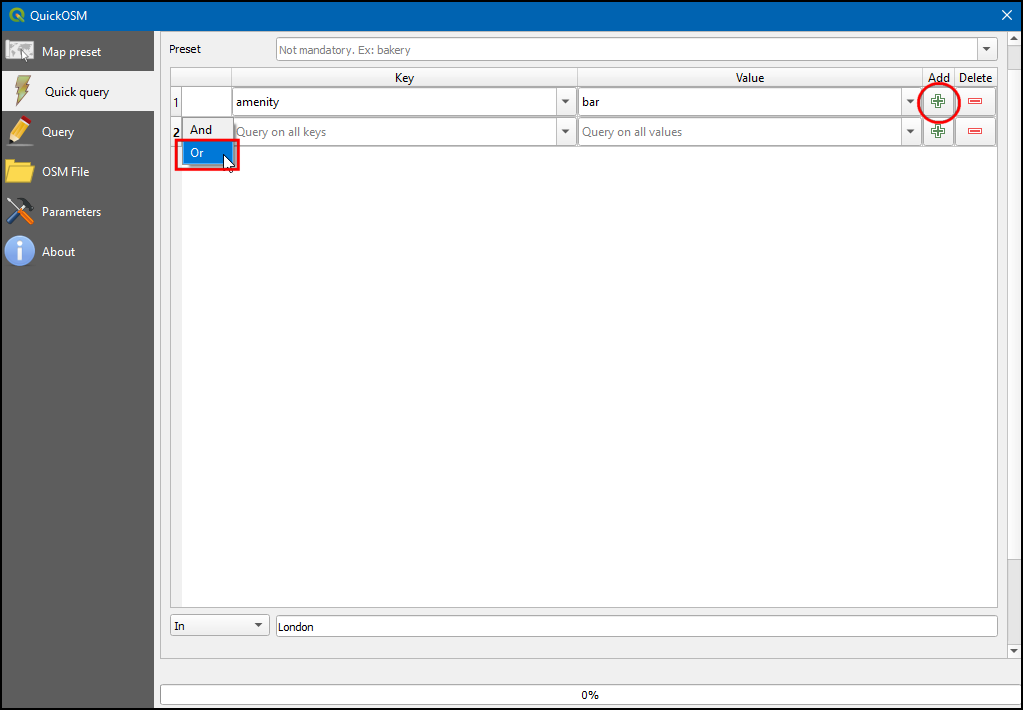

We can chain multiple queries in the latest version (v2.0.0 +) of the QuickOSM plugin. Click on the plus button next query selection bar will appear. Click on the first selection box where we can get option
Or. And will select only feature which is true for all queries. Or will select all features which are true for any of the queries. Click
Orto select both bar and pub features.
amenityas the Key from the drop-down menu. Then select
pubfrom the Value drop-down menu.

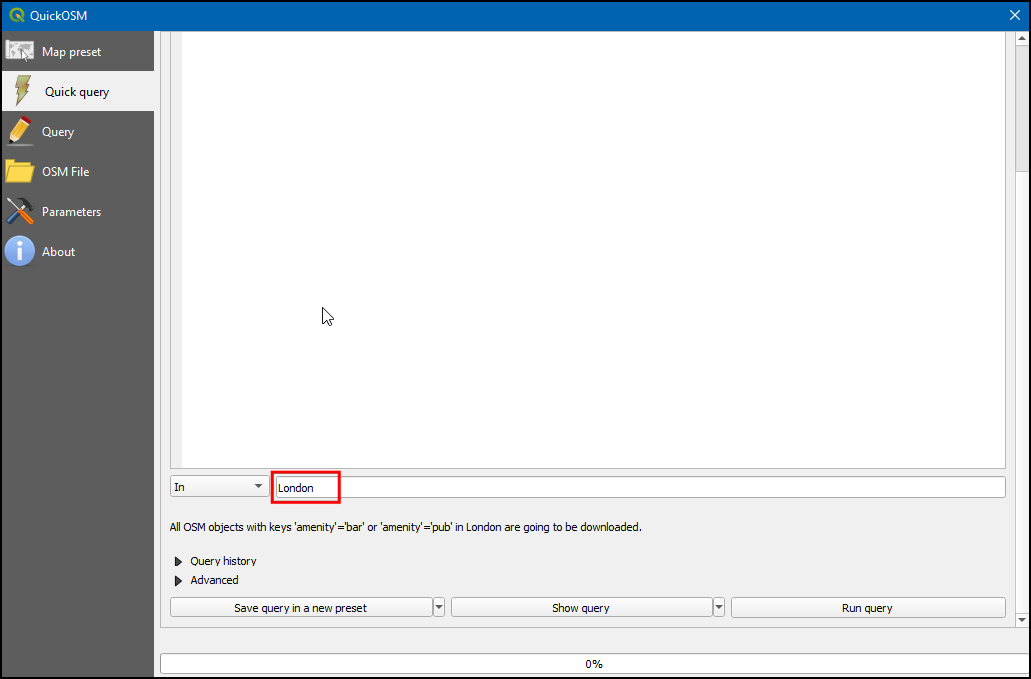

Londonas the In to restrict the search within the city boundary.

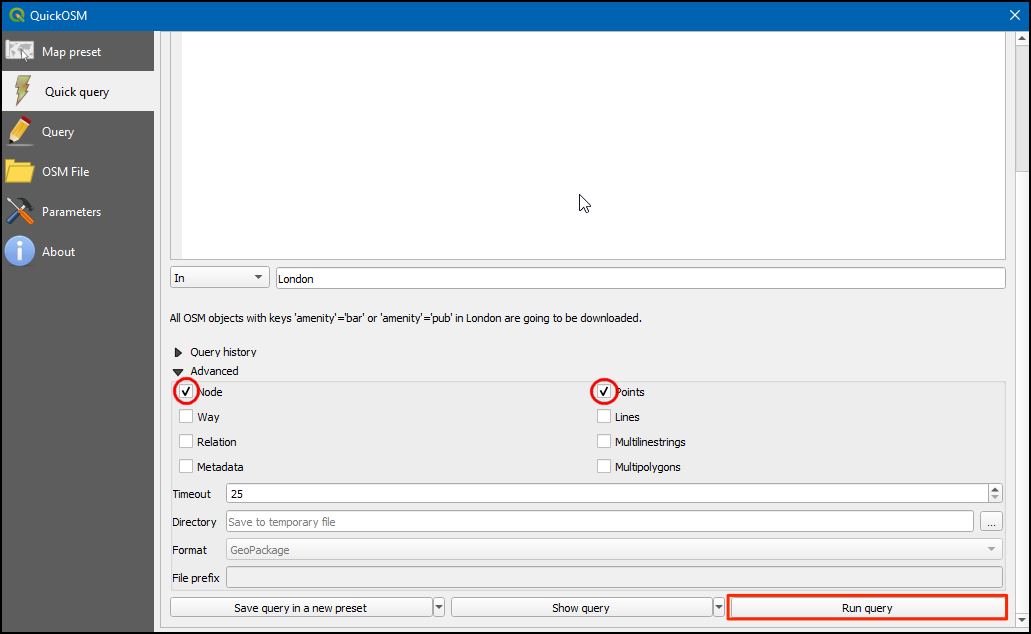

Expand the Advanced section. In the OSM data model, features are represented using nodes, ways and relations. As we are interested in the point features, you can select only
Points. Click Run query.

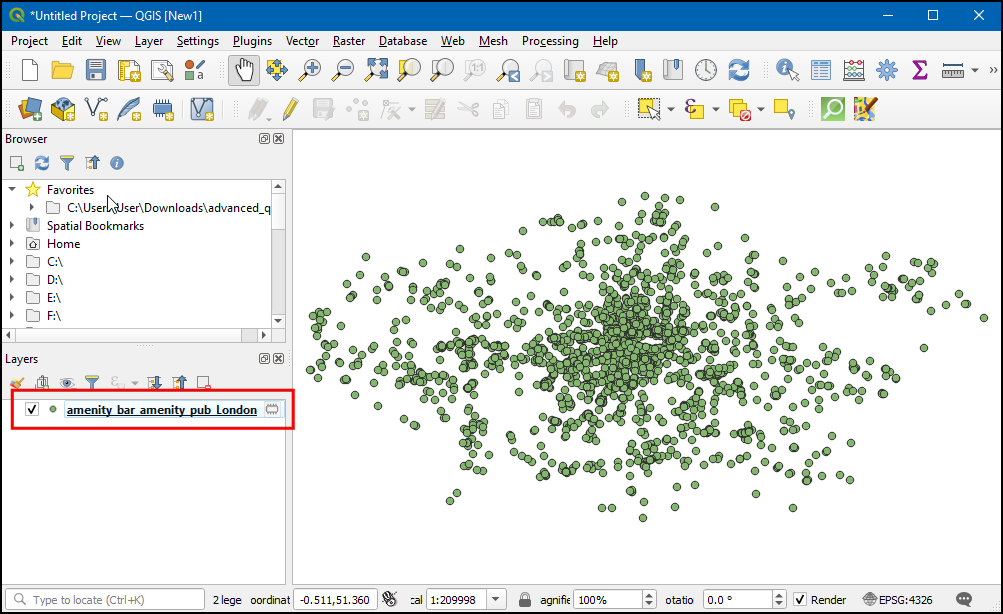

Once the query finishes, switch to the main QGIS window. You will see a new layer called
amenity_bar_amenity_pub_Londonadded to the Layers panel. The canvas will show the locations of the bars and pubs that were extracted.

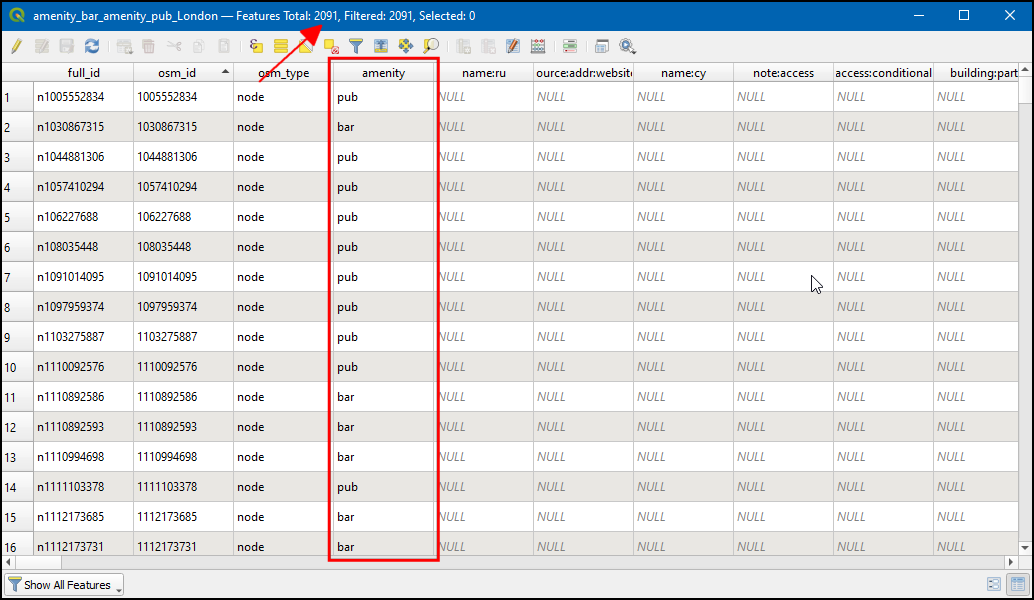

Open the Attribute table of the layer. There are
2091features. The column amenity contains the category whether the feature is
bar. Using this categorical column, lets style our layer.

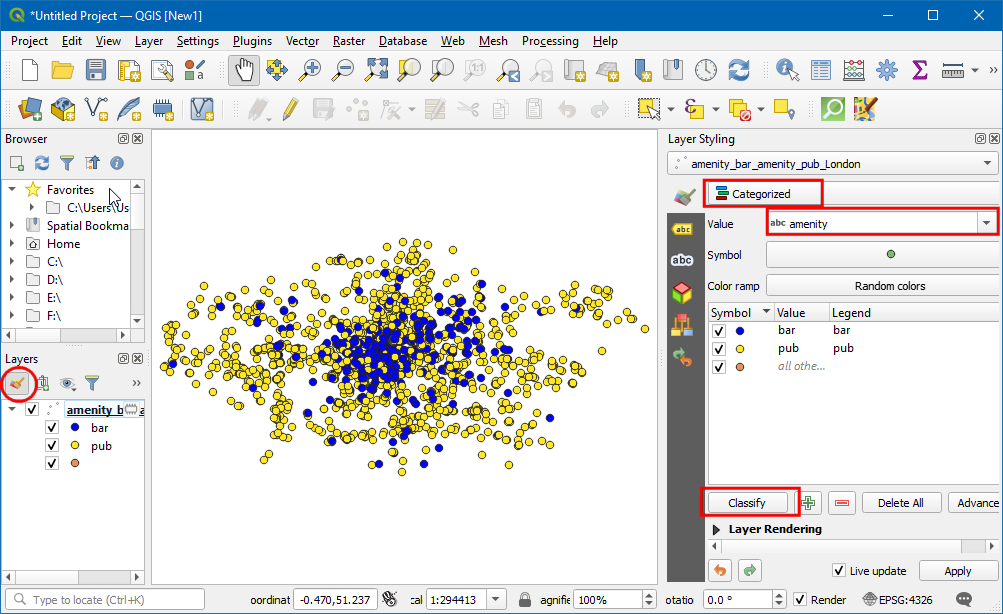

Click on the Open the Layer Styling panel icon, select
Categorizedthen in Value select
amenitythen click Classify. Now the layer will be styled with 2 color featuring both

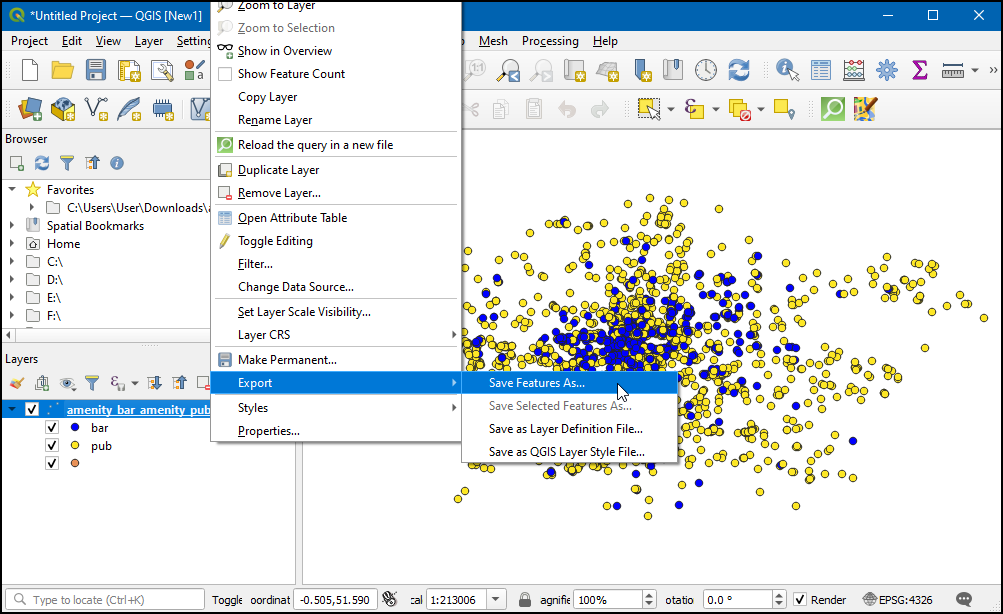

Now right-click on the layer,to export the layer as GeoPackage.

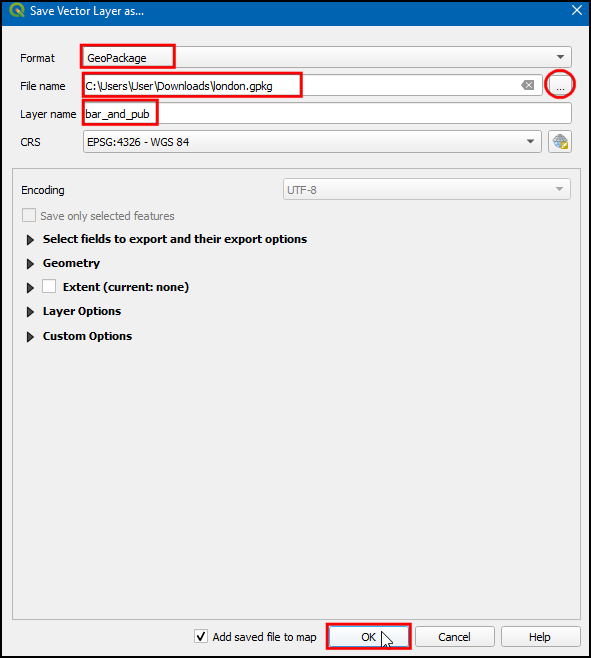

In the Save Vector Layer as… dialog box, in Format choose
GeoPackage, in File name click
...and browse to the directory where you want to save the data and name the output
london.gpkg. In Layer name enter
bar_and_pubs. Click OK.

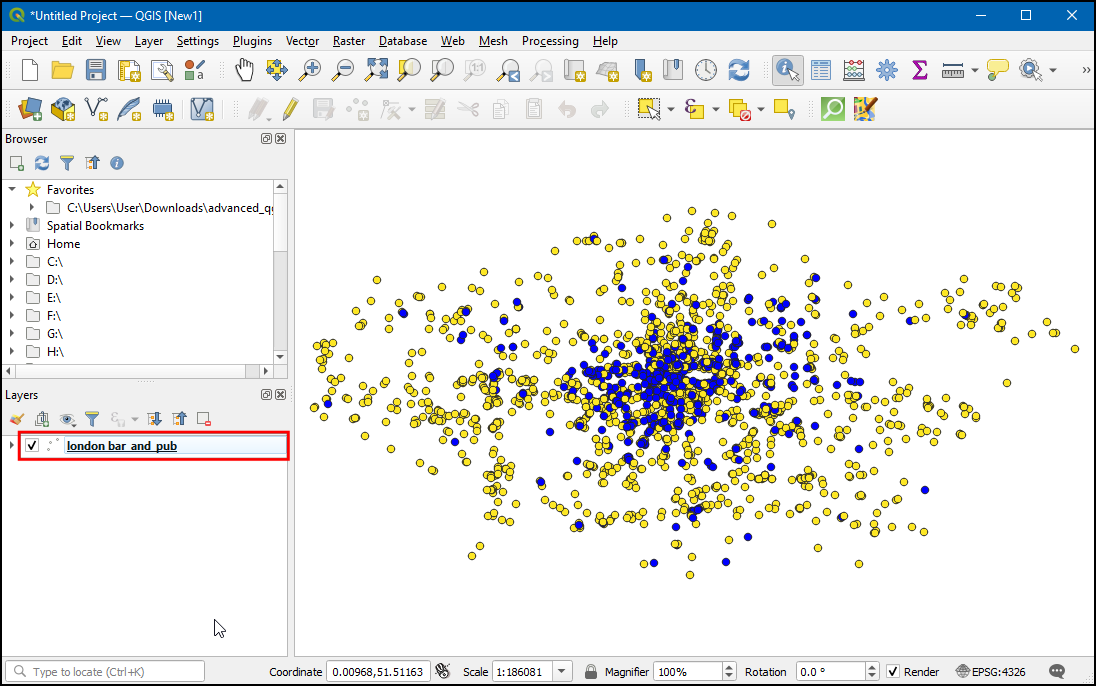

Now a GeoPackage layer
london_bar_and_pubswill be added to the canvas.
