Locating Nearest Facility with Origin-Destination Matrix (QGIS3)¶
In the previous tutorial, Basic Network Visualization and Routing (QGIS3), we learned how to build a network and calculate the shortest path between 2 points. We can apply that technique to many different types of network-based analysis. One such application is to compute Origin-Destination Matrix or OD Matrix. Given a set of origin points and another set of destination points, we can calculate the shortest path between each origin-destination pairs and find out the travel distance/time between them. Such analysis is useful to locate the closest facility to any given point. For example, a logistics company may use this analysis to find the closest warehouse to their customers to optimize delivery routes. Here we use the Distance Matrix algorithm from QGIS Network Analysis Toolbox (QNEAT3) plugin to find the nearest health facility to each address in the city.
This tutorial shows how to use your own network data to compute an origin-destination matrix. If you do not have your own network data, you can use ORS Tools Plugin and algorithm Service Area Analysis using Openrouteservice (QGIS3) to learn how to use ORS Tools plugin.to do a similar analysis using OpenStreetMap data. See
Overview of the task¶
We will take 2 layers for Washington DC - one with points representing addresses and another with points representing mental health facilities - and find out the facility with the least travel distance from each address.
Other skills you will learn¶
Extract a random sample from a point layer.
Use Virtual Layers to run SQL query on a QGIS layer.
Get the data¶
District of Columbia government freely shares hundreds of datasets on the Open Data Catalog.
Download the following data layers as shapefiles.
For convenience, you may directly download a copy of the datasets from the links below:
Data Source: [DCOPENDATA]

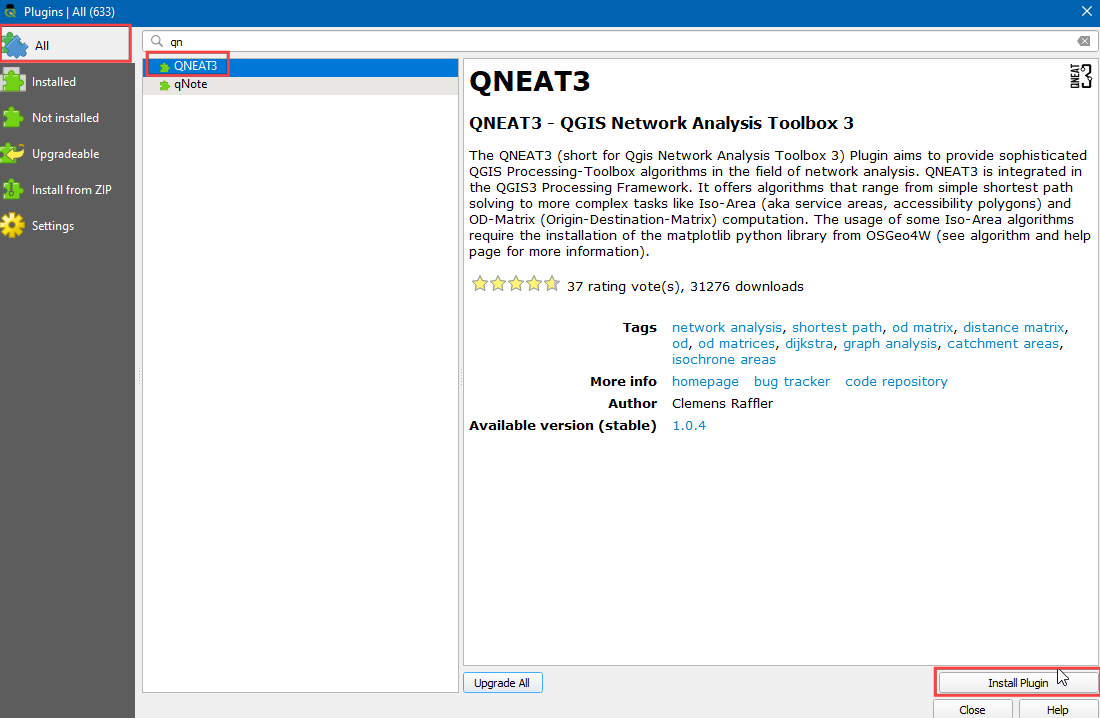

Visit Close.. Select :guilabel:` All` Search for QNEAT3 plugin and install it. Click
Community_Based_Service_Providers.zipfile, expand it and add

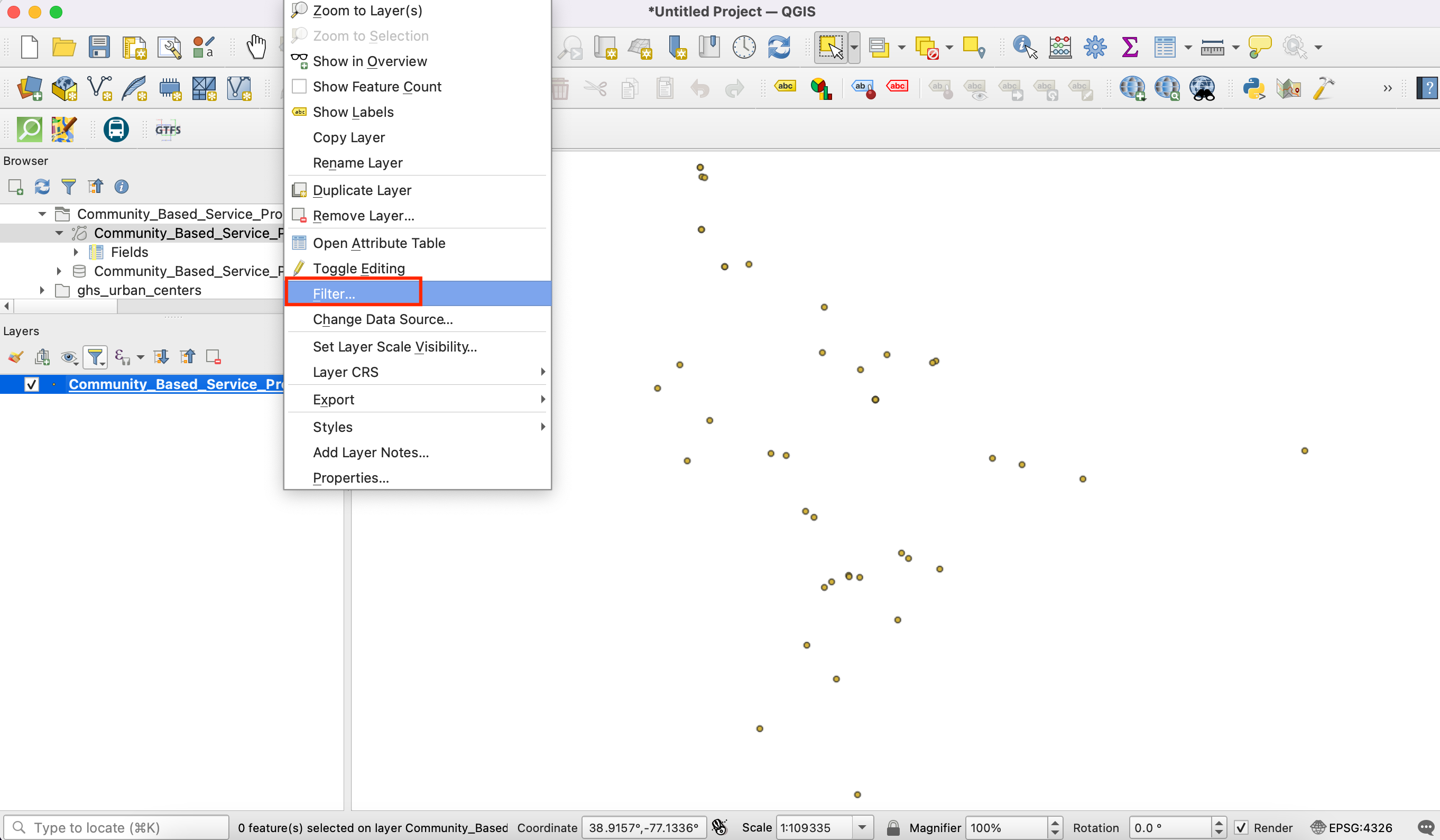

Community_Based_Service_Providers.shpto the canvas. We will select only those centres providing facilities to adults. Right-click on the
Community_Based_Service_Providers.shplayer and select Filter.

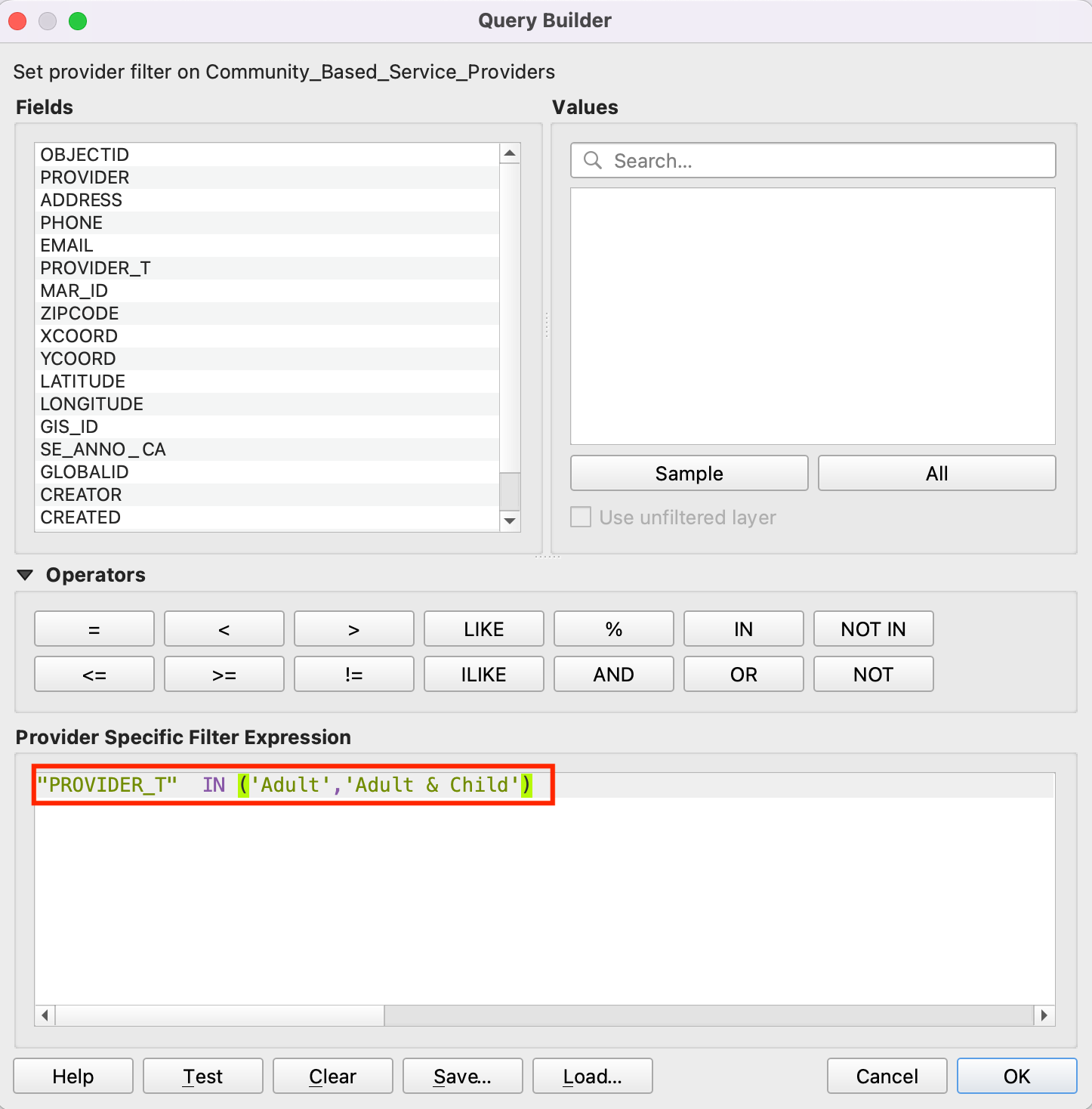

It will open a Query Builder dialog box. Enter the following query in the :guilabel:` Filter Expression` Click Run.
"PROVIDER_T" IN ('Adult','Adult & Child')
Next, locate the
Roadway_Block.zipfile, expand it and add the
Roadway_Block.shp. Similarly, locate the
Address_Points.zipfile, expand it and add the

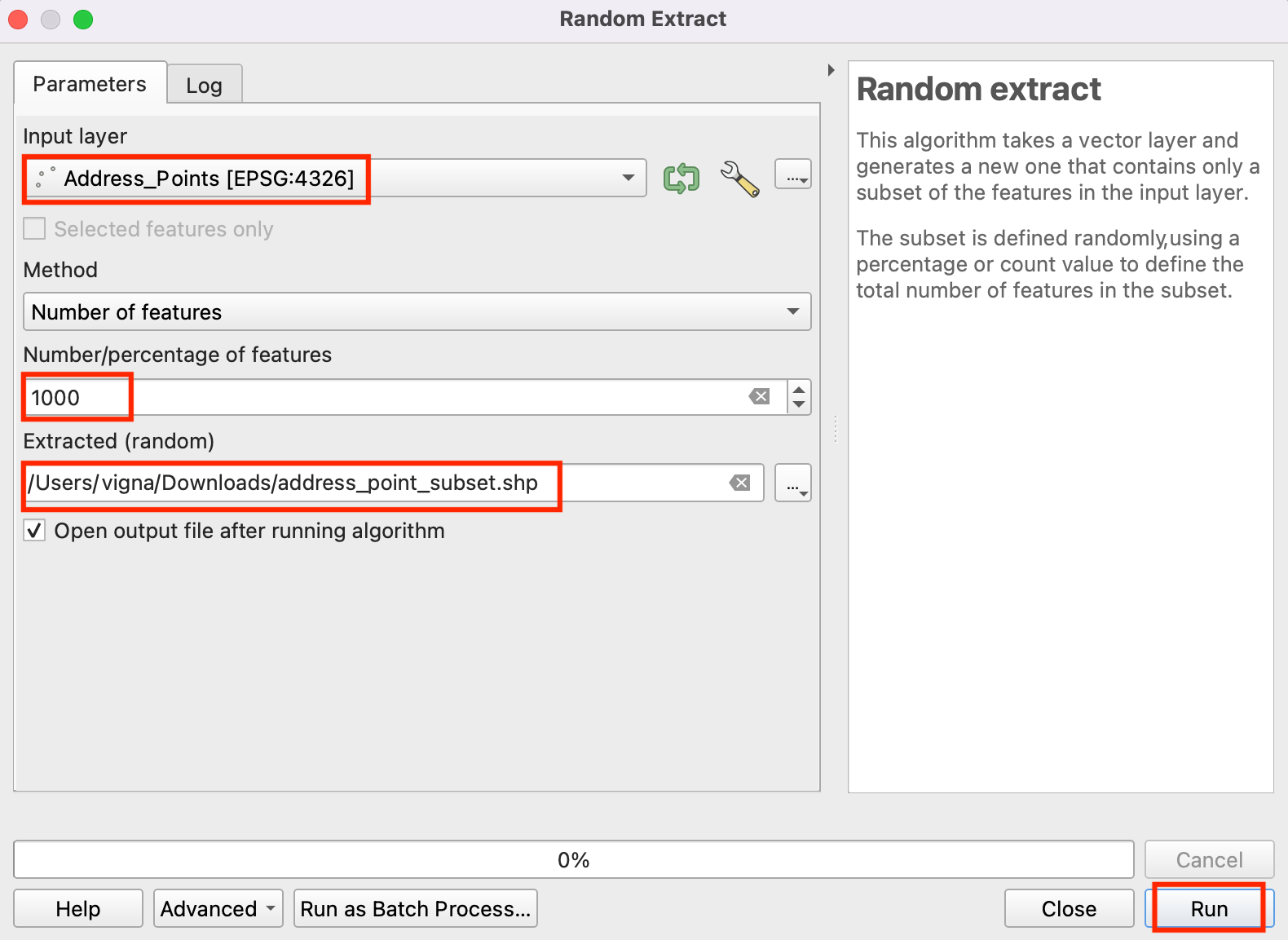

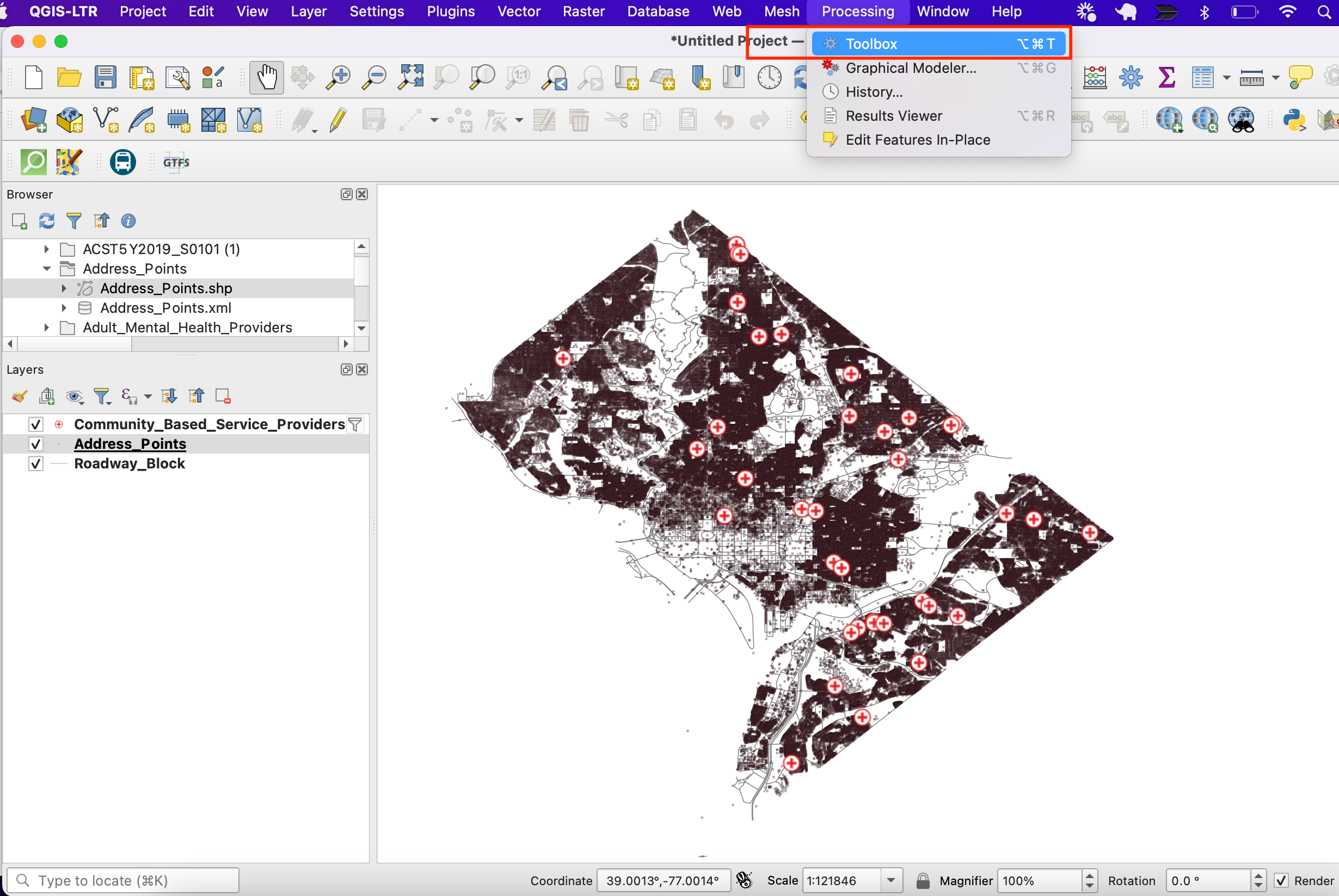

Address_Points.shp. You will see a lot of points around the city. Each point represents a valid address. We will select 1000 points randomly. This technique is called random sampling. Go to .
Search for and locate thealgorithm.
Address_Pointsas the Input layer,
Number of featureas the Method and, enter
1000in the Number/percentage of features. In the Extracted (random) choose the
...and click Save to a file. Now choose the directory and enter the name as
address_point_subset.shpand click Run.
As the algorithm will extract 1000 random points from the given data set, to replicate the exact points used in this exercise you can download the subset file which we got during the execution of the algorithm here address_point_subset.zip . After downloading load
address_point_subset.shp layer into QGIS.
A new layer
address_point_subsetwill be added to the Layers panel, you can turn off the visibility of
Address_Pointsaddress points layer. Let’s rename this layer as

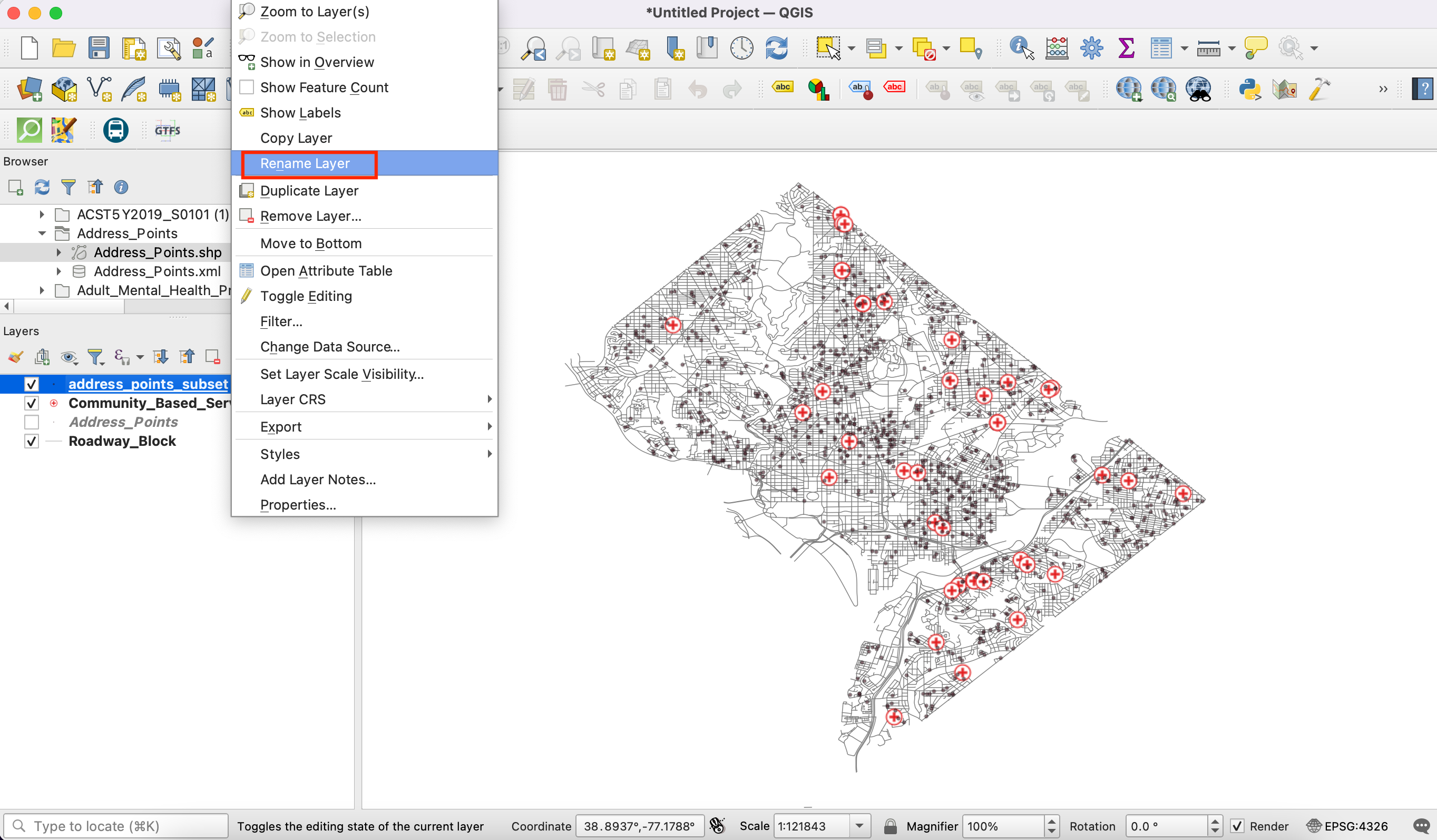

origin_points. Right-click on the
address_point_subsetlayer and select Rename layer.
Similarly, rename the
Community_Based_Service_Providerlayers representing the health facilities as

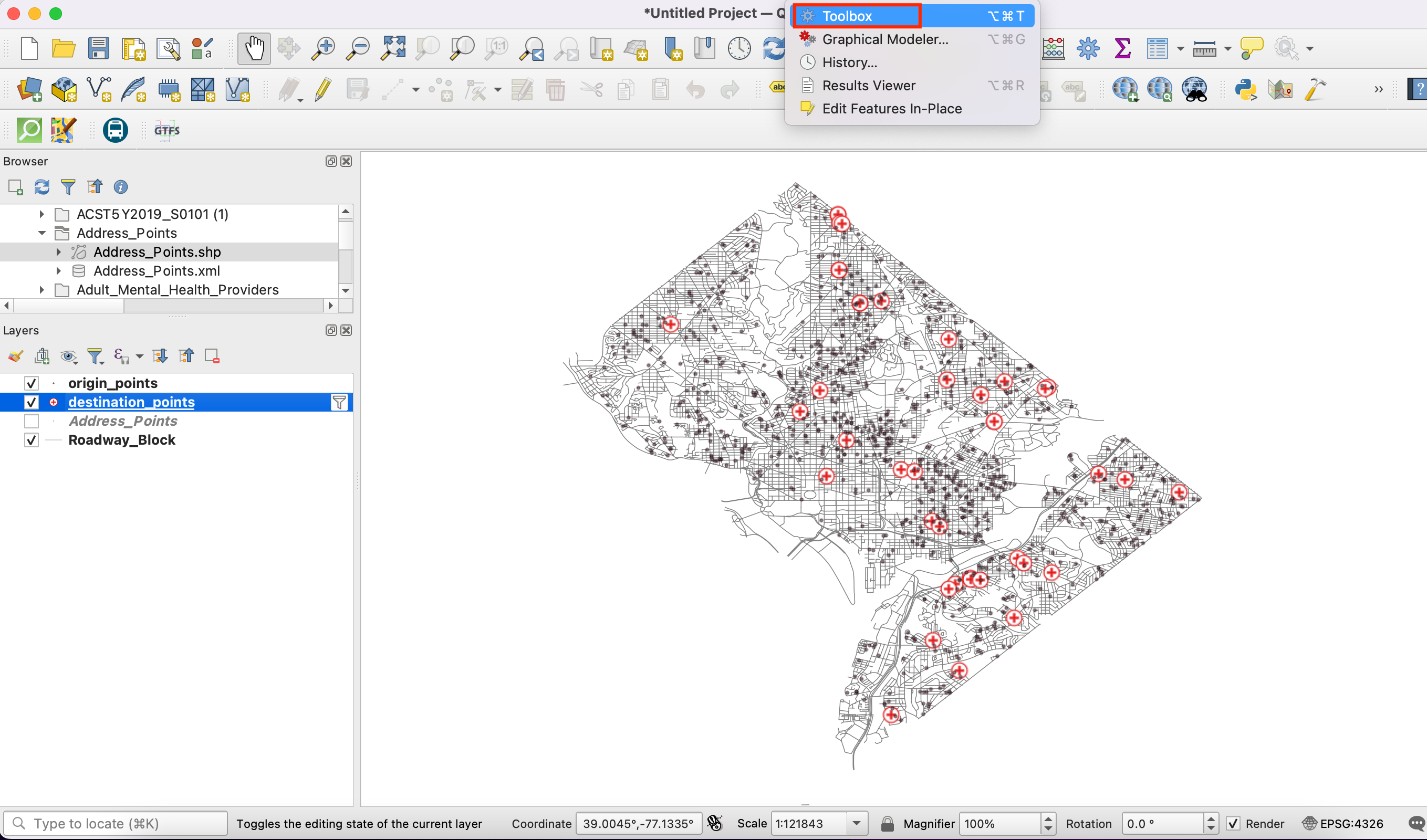

destination_points. Naming the layers this way makes it easy to identify them in subsequent processing. Further we will open processing toolbox to create the distance matrix using origin and destination layers.

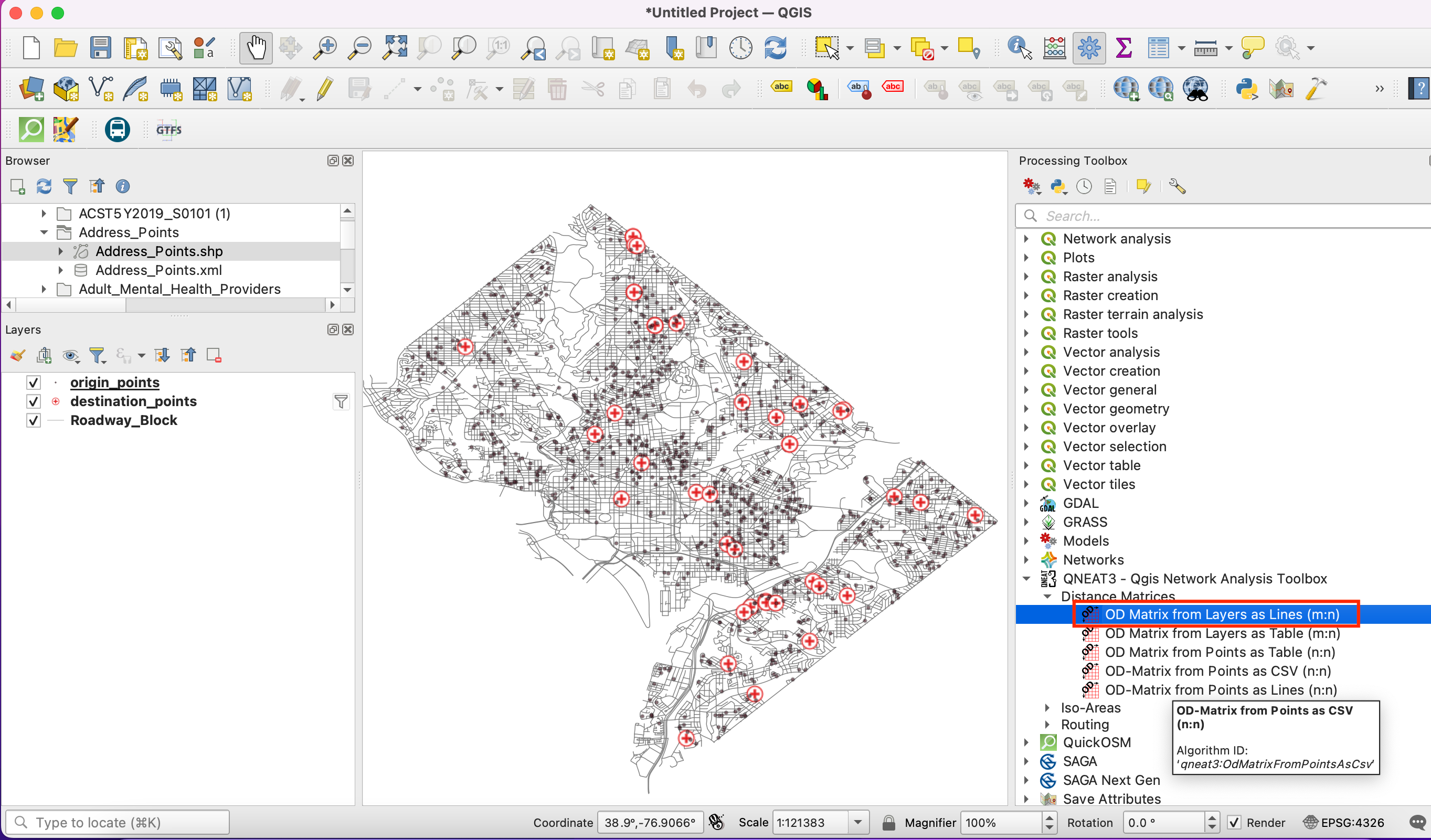

Locate thealgorithm. If you do not see this algorithm in the toolbox, make sure you have installed the QNEAT3 plugin.

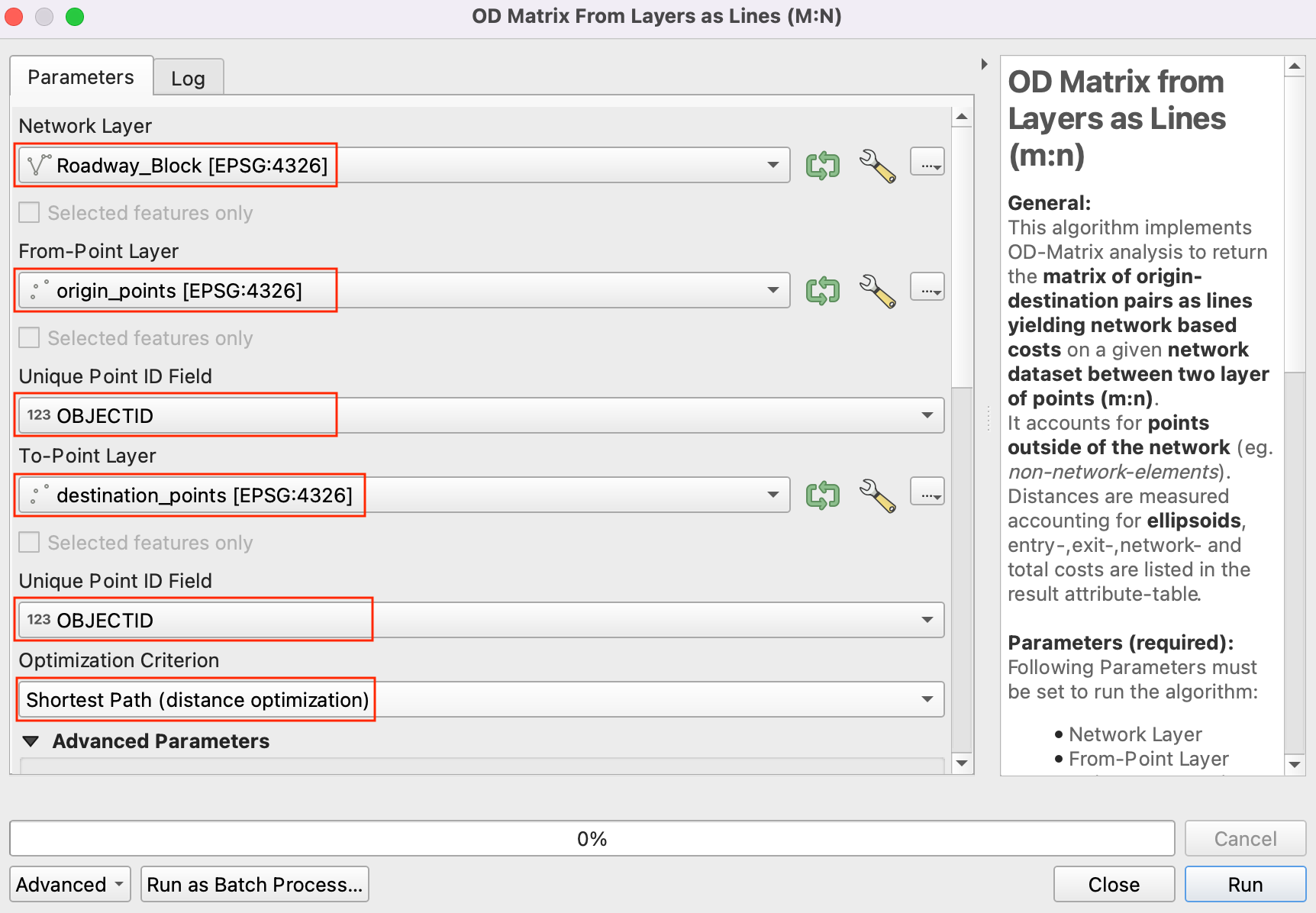

This algorithm helps find the distances along with the network between selected origin and destination layers. Select
Roadway_Blockas the Network layer. Select
origin_pointsas the From-Points layer and
OBJECTIDas the Unique Point ID field. Similarly, set
destination_pointsas the To-Points Layer and
OBJECTIDas the Unique Point ID field. Set the Optimization Criterion as
Shortest Path (distance optimization).

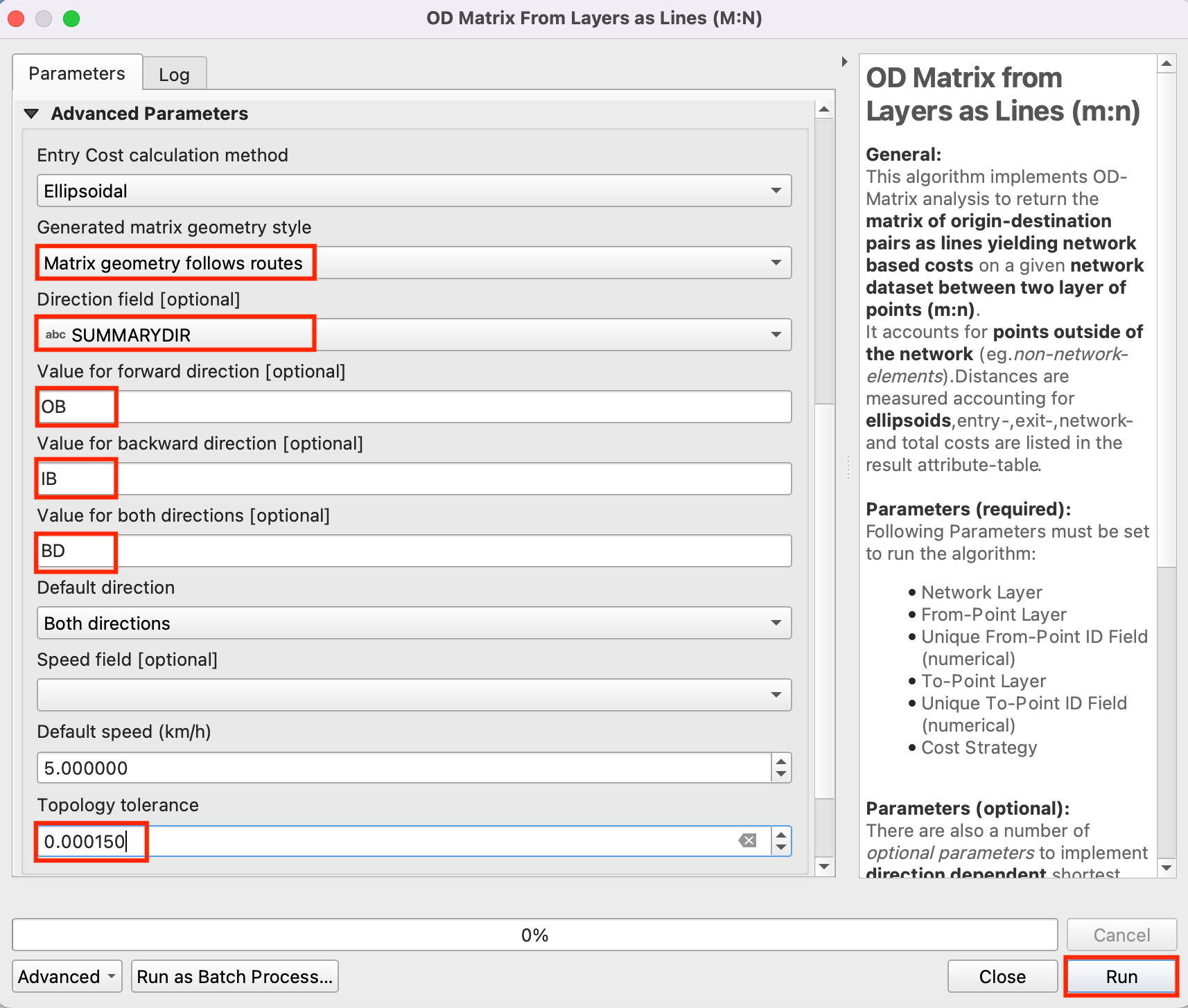

As many streets in the network are one-way, we need to set the Advanced parameters to specify the direction. See Basic Network Visualization and Routing (QGIS3) for more details on how these attributes are structured. We also have an option to select geometry style of the generated matrix. We are having a road network with direction information so we can generate matrix by folling the route. Choose
Matrix geometry follows routes. Choose
SUMMARYDIRas the Direction field. Enter
OBas the Value for the forward direction,
IBas the Value for backward direction, and
BDas the Value for the both direction. Set the Topology tolerance as
0.0000150. Keep other options to their default values and click Run.

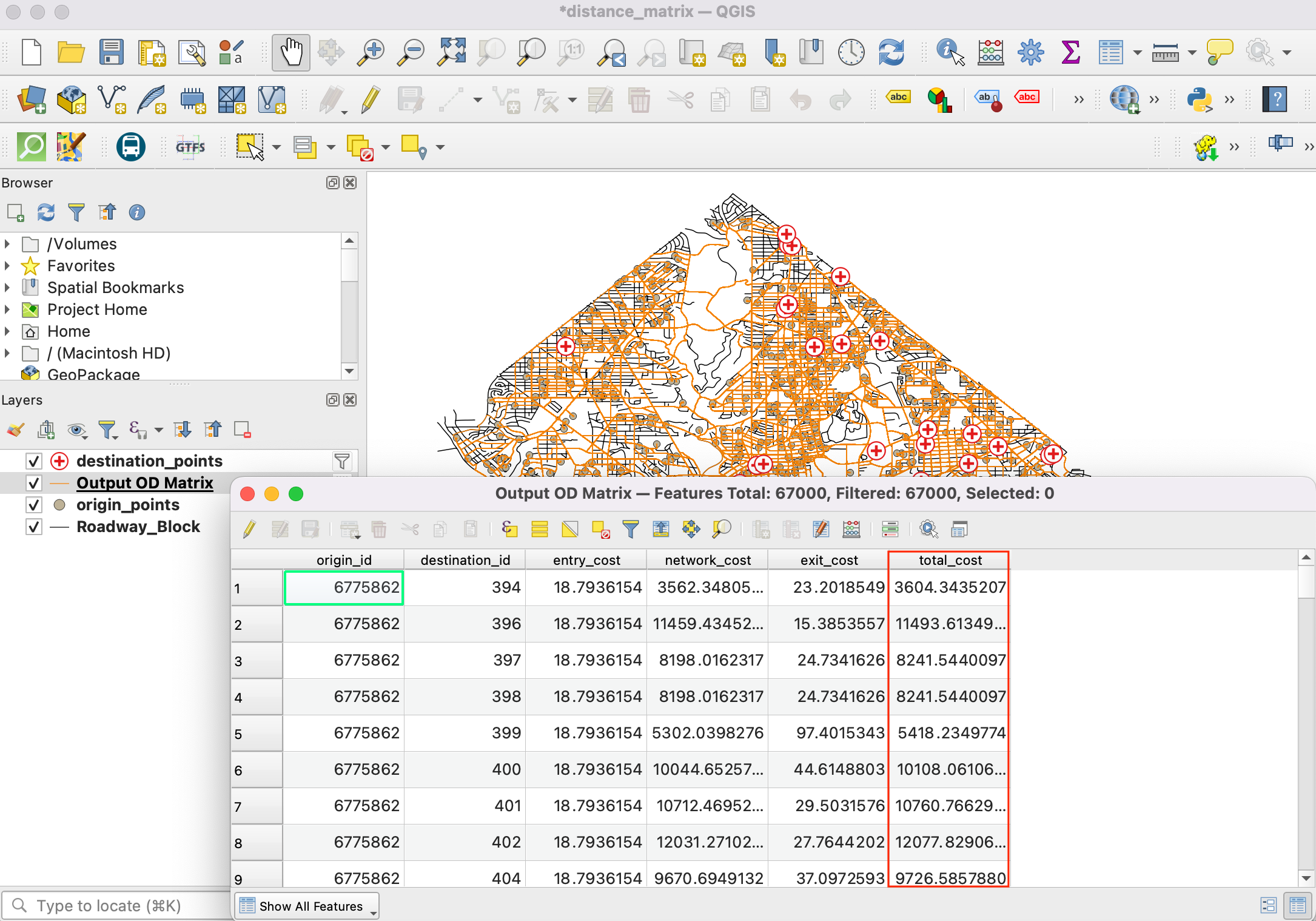

A new table layer called
Output OD Matrixwill be added to the Layers panel. Right-click and select Open Attributes Table. You will see that the table contains 67000 rows. We had 67 origin points and 1000 destination points - so the output contains 67x1000 = 67000 pairs of origins and destination. The
total_costcolumn contains distance in meters between each origin point to every destination point.
For this tutorial, we are interested in only the destination point with the shortest distance. We can create a SQL query to pick the destination with the least

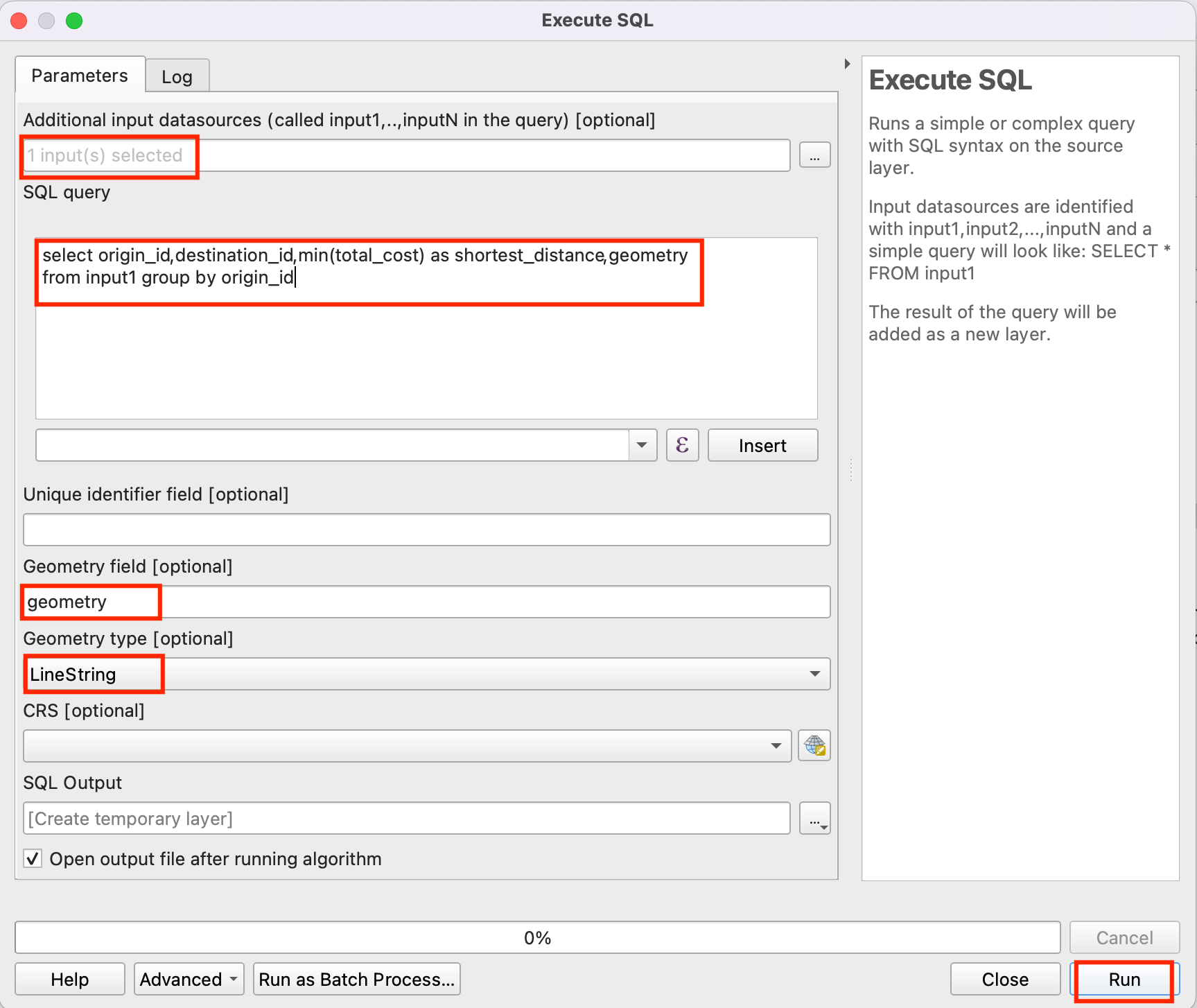

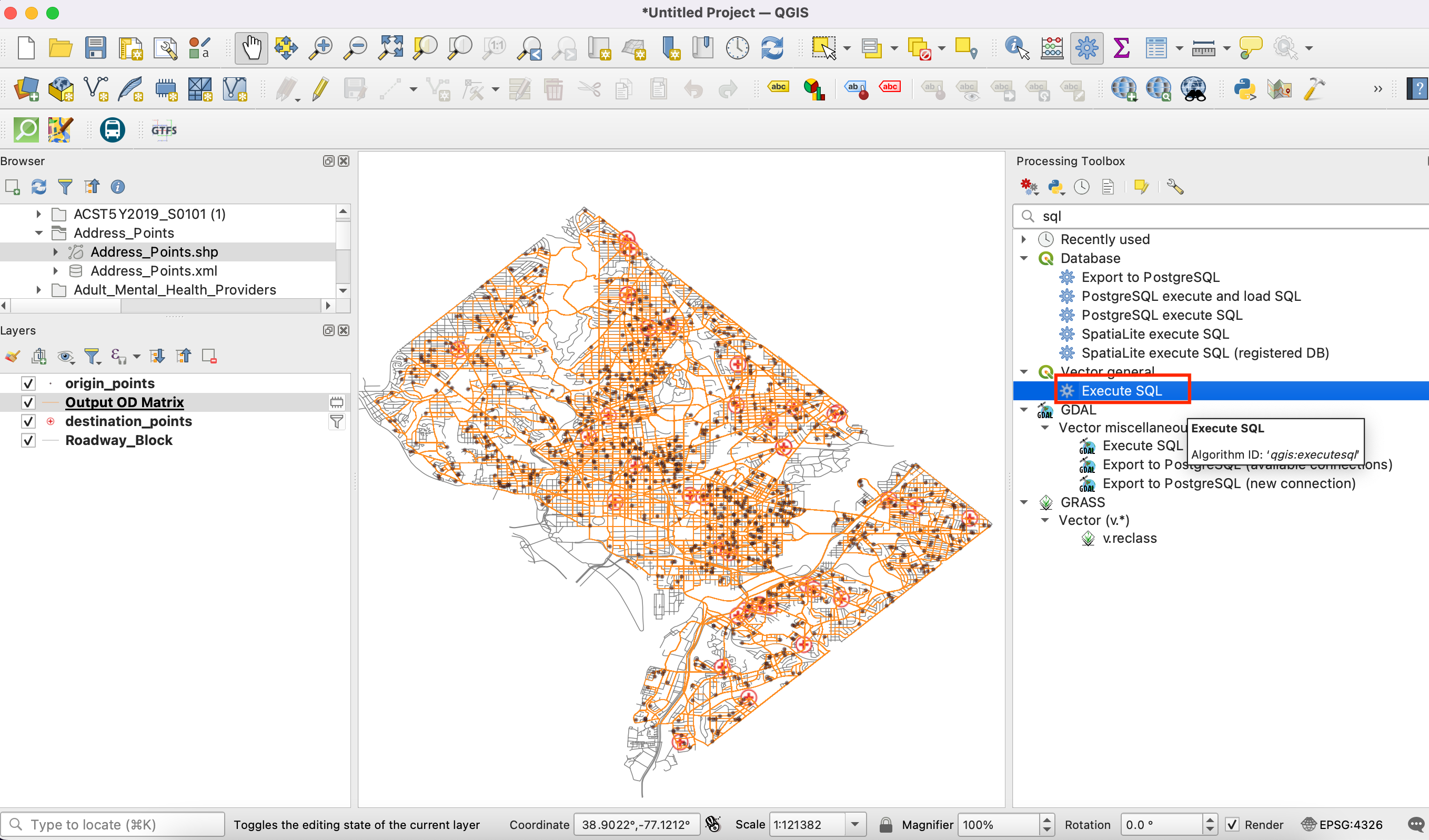

total_costamong all destinations. Go to .Search for and locate the .
In Additional input data sources select
...and check the Output OD Matrix and, click OK. Now click the Summation under SQL query. Enter the following query in SQL query dialog box. Enter
geometryas the Geometry field and, select
LineStringas the Geometry type. Click Run.
select origin_id, destination_id, min(total_cost) as shortest_distance, geometry from input1 group by origin_id

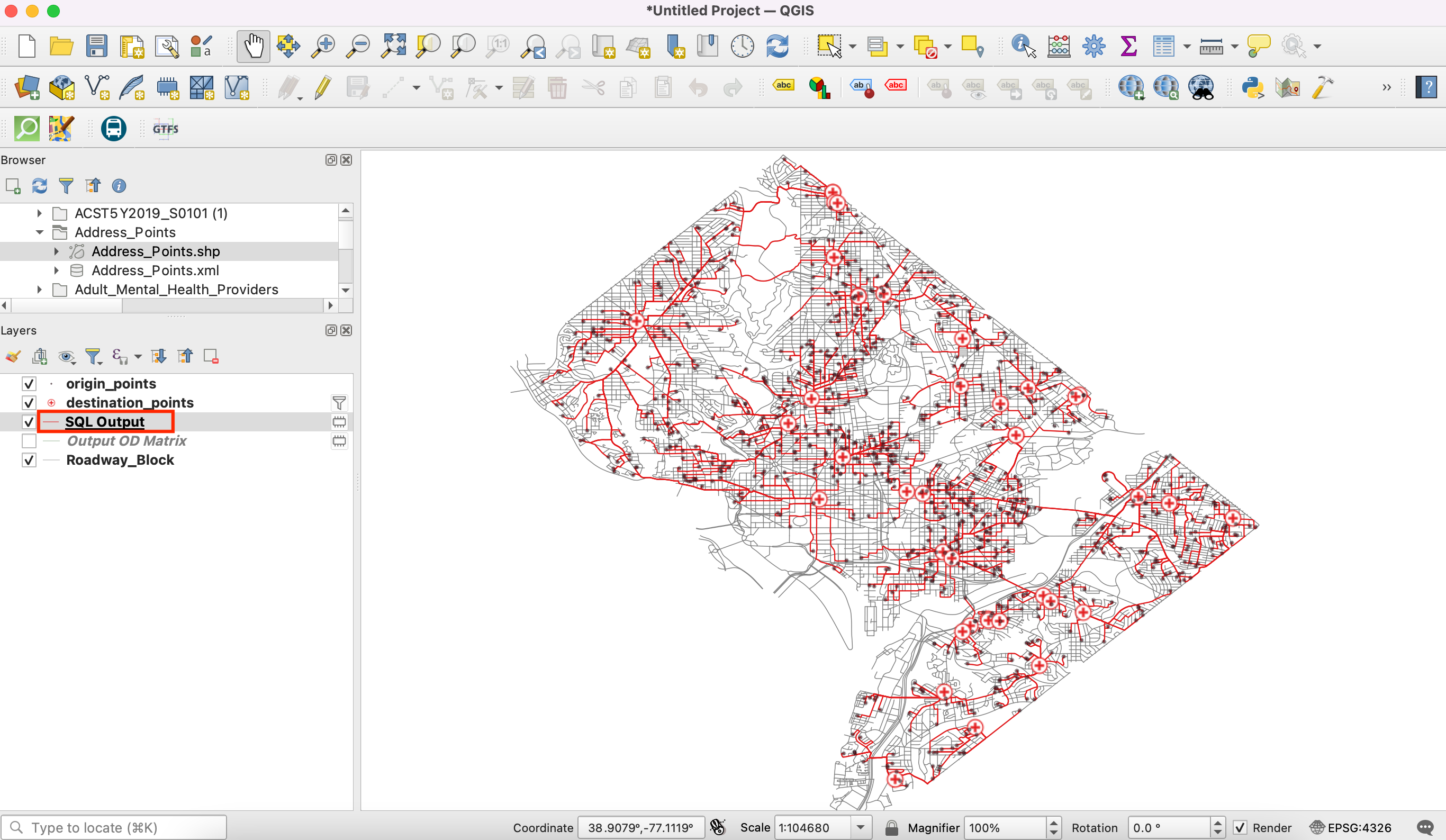

A new virtual layer
SQL Outputwill be added to the Layers panel. This Layer has the result of our analysis. Nearest service provider for each of the 1000 origin points.
